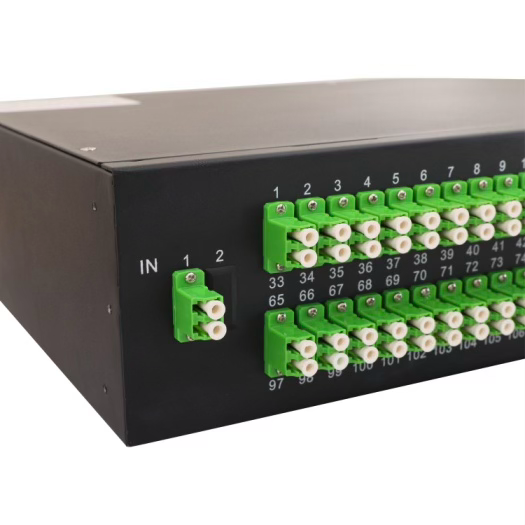

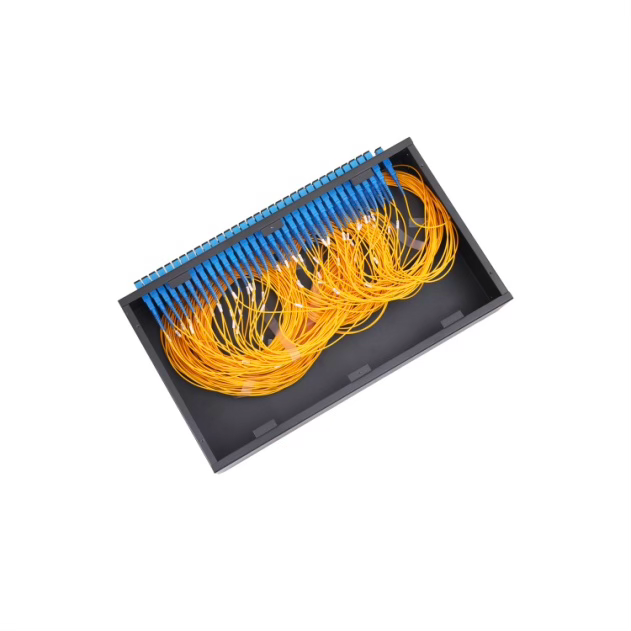

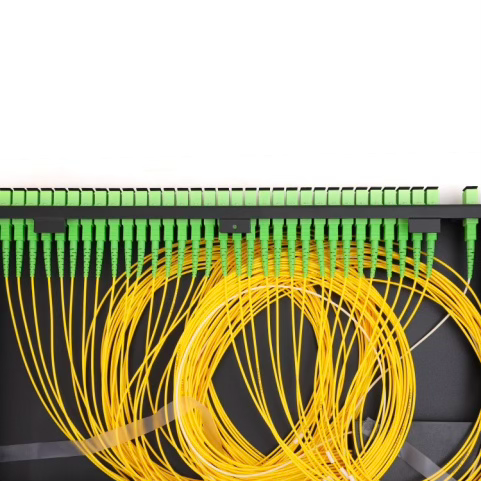

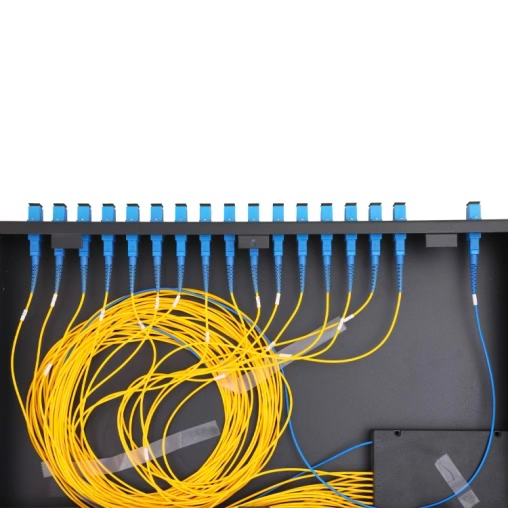

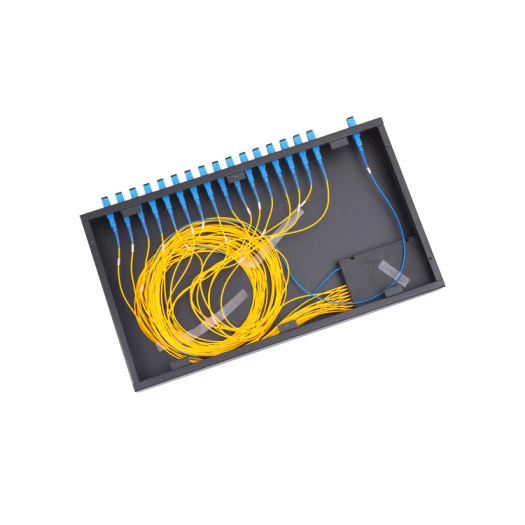

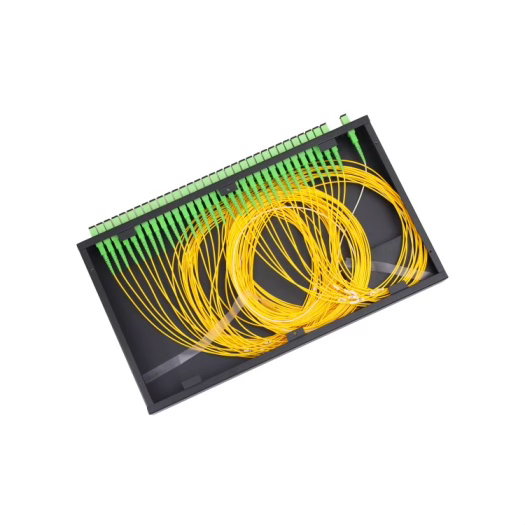

The PLC Splitter Box Rack Mounted Fiber Optic Patch Panel is a professional-grade optical distribution unit designed for high-capacity fiber networks. Built for FTTH, telecom, and data center applications, it combines PLC splitter integration with a standard 19-inch rack mountable housing. This solution delivers efficient signal distribution, streamlined fiber management, and enhanced network scalability, making it an essential component for reliable optical networks.
| Column 1 | Column 2 | Column 3 | Column 4 | Column 5 | Column 6 | Column 7 | Column 8 | Column 9 | Column 10 |
|---|---|---|---|---|---|---|---|---|---|
| Item | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×4 | 2×8 | 2×16 | 2×32 |
| Insertion Loss (dB) Max. | <7.3 | <10.8 | <13.8 | <17.2 | <20.5 | <7.6 | <11.2 | <14.5 | <18.2 |
| Uniformity (dB) Max. | <0.8 | <1.0 | <1.5 | <2.0 | <2.5 | <1.0 | <1.5 | <2.0 | <2.5 |
| Co PDL (dB) Max. | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | <0.4 | <0.4 |
| Operating Wavelength | 1260 ~ 1650 nm | ||||||||
| Directivity (dB) Min | 55 | ||||||||
| Return Loss (dB) Min | UPC: 50 / APC: 55 | ||||||||
| Fiber Type | Single-mode / Multimode | ||||||||
| Operating Temperature | -5~ +75℃ | ||||||||
| Storage Temperature | -40 ~ +85℃ | ||||||||
| Fiber Length | 1m or custom length | ||||||||
| Connector Type | Custom specified | ||||||||
| Power Handling | 300 mW | ||||||||
