Features:

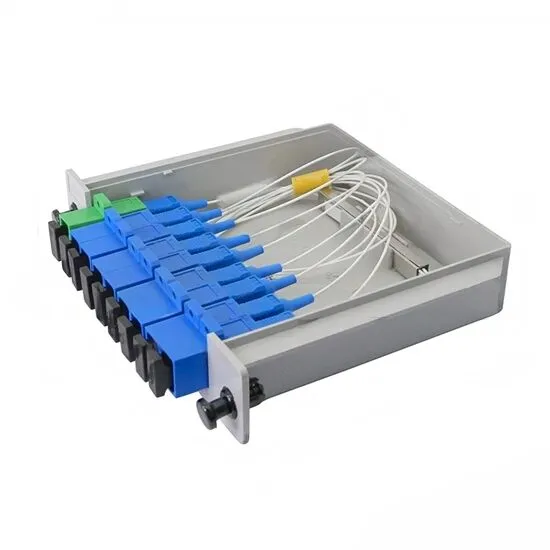

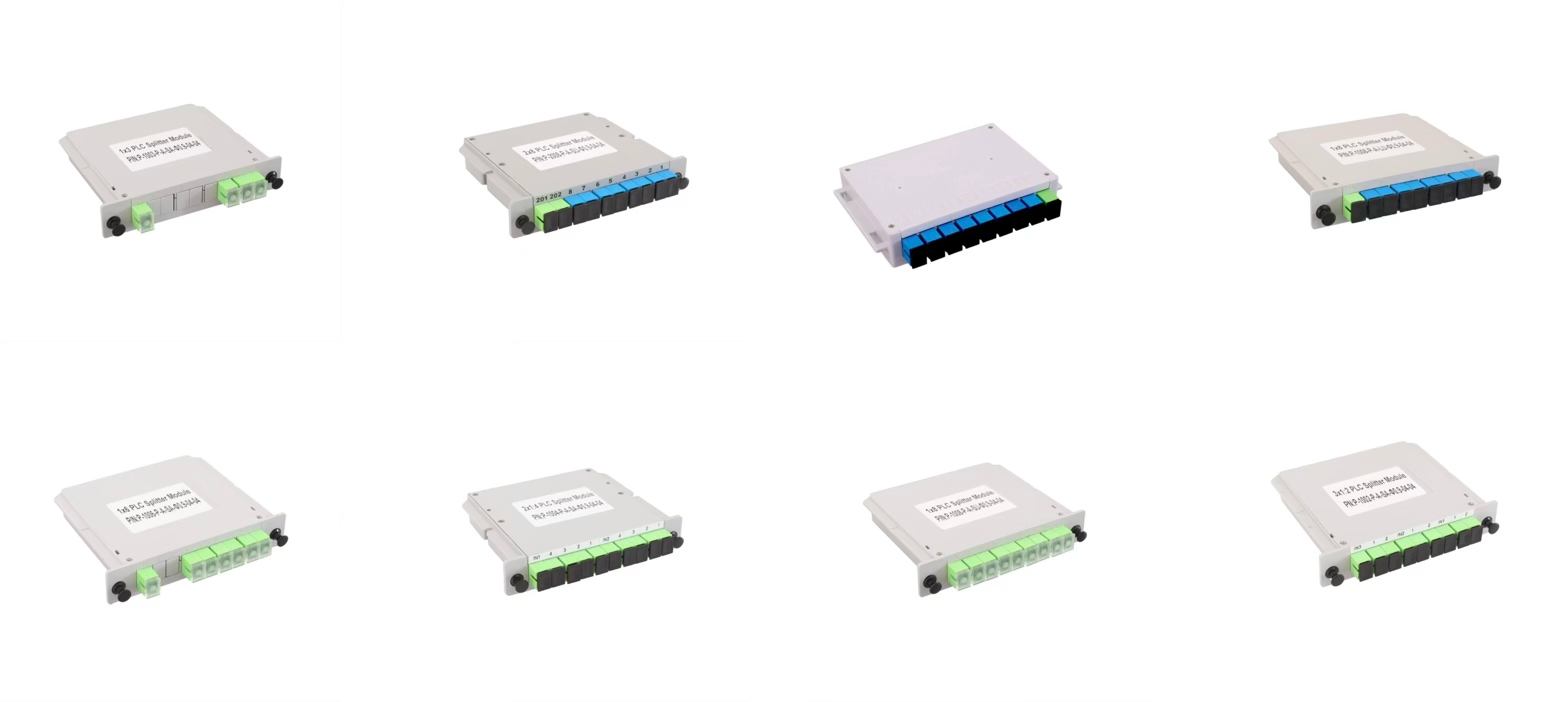

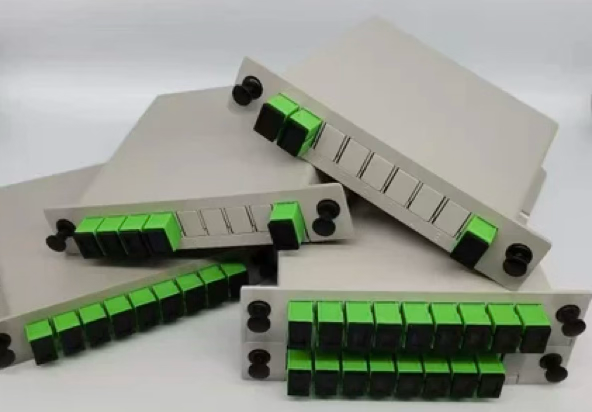

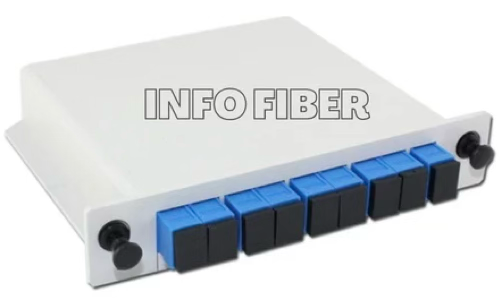

1×N / 2×N LGX Cassette Type Fiber Optic Splitter

The 1×N / 2×N LGX Cassette Type Fiber Optic Splitter is a high-performance, compact device designed for efficient optical signal distribution. With options for configurations up to 1×64 and 2×64, it is ideal for FTTx, CATV, and data center applications. Built with bend-insensitive single-mode fibers (ITU G657A), it guarantees stable performance with minimal signal degradation. Multiple packaging options make it adaptable for rack-mount, LGX box, and other installations.

Compact Modular Design: LGX-compatible dimensions ensure easy integration into existing rack systems while minimizing space usage.
Wide Configuration Options:Supports various configurations, including 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 2×N, and more.
Premium Optical Performance: Uniform power splitting with low insertion loss and high return loss enhances system efficiency.
Wide Operating Range: Works seamlessly within a temperature range of -40°C to 85°C, ensuring reliable performance in diverse conditions.
Customizable Options: Pigtail lengths and fiber types can be tailored to project-specific requirements.

Product Specifications

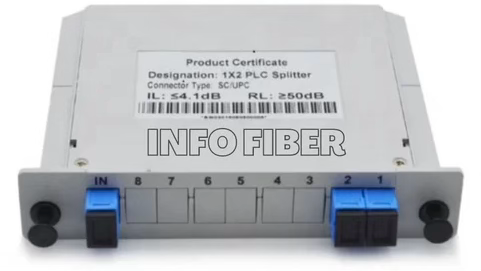

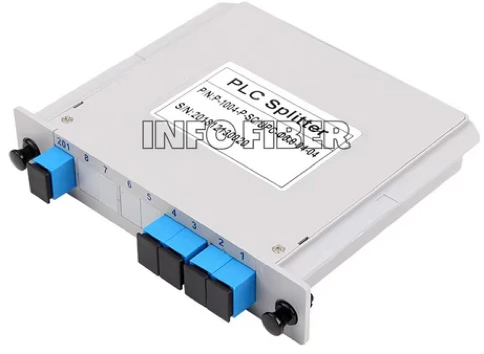

1×N PLC Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operation Wavelength (nm)	1260-1650	1260-1650	1260-1650	1260-1650	1260-1650	1260-1650
Insertion Loss (dB) Max	4.2	7.4	10.7	13.8	17.4	21.2
Return Loss (dB) Min	55/50	55/50	55/50	55/50	55/50	55/50
PDL (dB) Max	0.2	0.3	0.3	0.3	0.3	0.5
Directivity (dB) Min	55	55	55	55	55	55
WDL (dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operation Temperature (°C)	-40~85	-40~85	-40~85	-40~85	-40~85	-40~85
Storage Temperature (°C)	-40~85	-40~85	-40~85	-40~85	-40~85	-40~85
Module Dimensions (L×W×H) (mm)	130×100×25	130×100×25	130×100×25	130×100×50	130×100×102	130×100×206

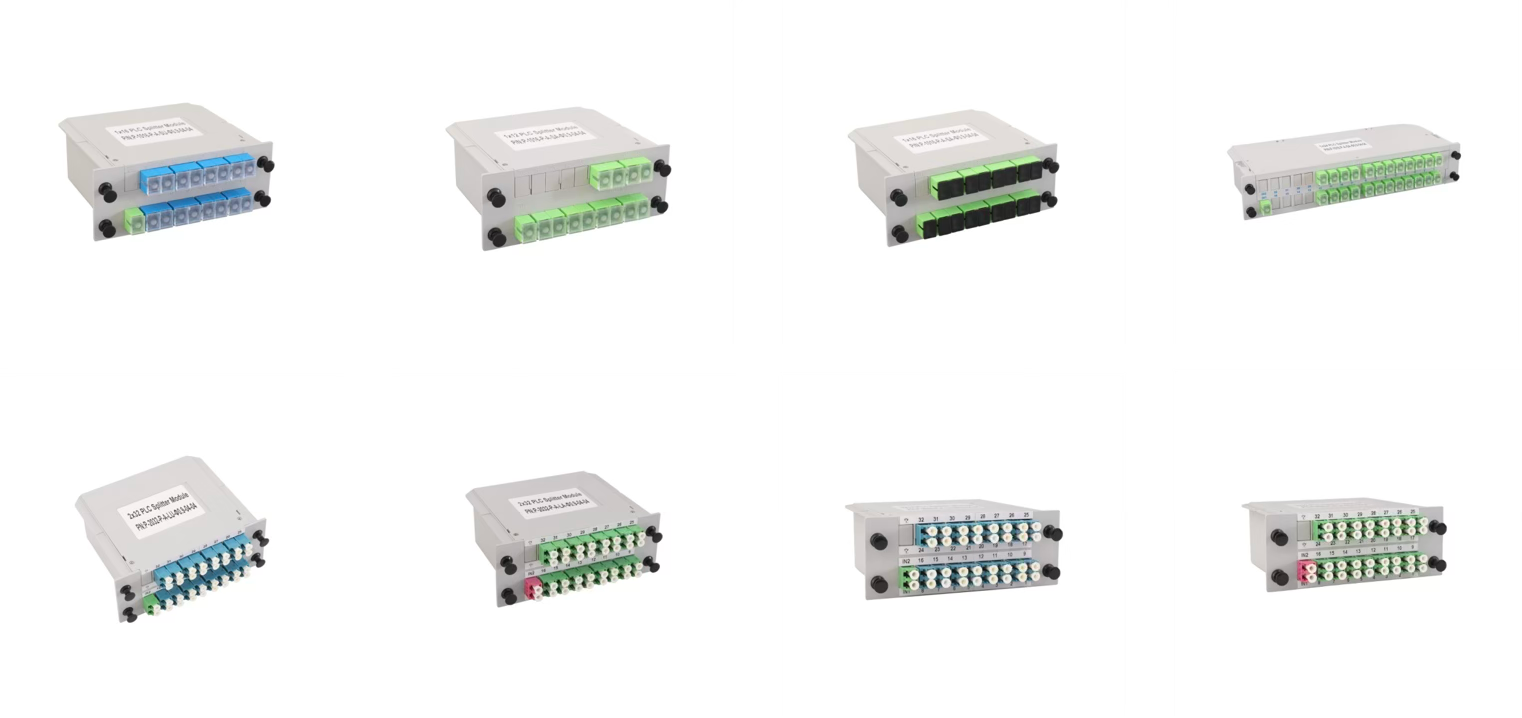

2×N PLC Splitters

Parameters	2×4	2×8	2×16	2×32
Operation Wavelength (nm)	1260-1650	1260-1650	1260-1650	1260-1650
Insertion Loss (dB) Max	7.7	11.4	14.8	17.7
Return Loss (dB) Min	55/50	55/50	55/50	55/50
PDL (dB) Max	0.2	0.3	0.3	0.3
Directivity (dB) Min	55	55	55	55
WDL (dB)	0.4	0.4	0.5	0.5
Operation Temperature (°C)	-40~85	-40~85	-40~85	-40~85
Storage Temperature (°C)	-40~85	-40~85	-40~85	-40~85
Module Dimensions (L×W×H) (mm)	130×100×25	130×100×25	130×100×50	130×100×102

Application Details

Telecommunications Networks: Ensures efficient optical signal splitting for large-scale telecom systems.
FTTx Deployments: Ideal for fiber-to-the-home/building (FTTH/FTTB) applications.
Data Centers: Optimizes high-density signal distribution for seamless network operations.
CATV Systems: Distributes cable TV signals effectively with minimal loss.
Optical Test Equipment: Provides accurate splitting for laboratory and field measurements.

Compact Modular Design: LGX-compatible dimensions ensure easy integration into existing rack systems while minimizing space usage.
Wide Configuration Options:Supports various configurations, including 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 2×N, and more.
Premium Optical Performance: Uniform power splitting with low insertion loss and high return loss enhances system efficiency.
Wide Operating Range: Works seamlessly within a temperature range of -40°C to 85°C, ensuring reliable performance in diverse conditions.
Customizable Options: Pigtail lengths and fiber types can be tailored to project-specific requirements.

Product Specifications

1×N PLC Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operation Wavelength (nm)	1260-1650	1260-1650	1260-1650	1260-1650	1260-1650	1260-1650
Insertion Loss (dB) Max	4.2	7.4	10.7	13.8	17.4	21.2
Return Loss (dB) Min	55/50	55/50	55/50	55/50	55/50	55/50
PDL (dB) Max	0.2	0.3	0.3	0.3	0.3	0.5
Directivity (dB) Min	55	55	55	55	55	55
WDL (dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operation Temperature (°C)	-40~85	-40~85	-40~85	-40~85	-40~85	-40~85
Storage Temperature (°C)	-40~85	-40~85	-40~85	-40~85	-40~85	-40~85
Module Dimensions (L×W×H) (mm)	130×100×25	130×100×25	130×100×25	130×100×50	130×100×102	130×100×206

2×N PLC Splitters

Parameters	2×4	2×8	2×16	2×32
Operation Wavelength (nm)	1260-1650	1260-1650	1260-1650	1260-1650
Insertion Loss (dB) Max	7.7	11.4	14.8	17.7
Return Loss (dB) Min	55/50	55/50	55/50	55/50
PDL (dB) Max	0.2	0.3	0.3	0.3
Directivity (dB) Min	55	55	55	55
WDL (dB)	0.4	0.4	0.5	0.5
Operation Temperature (°C)	-40~85	-40~85	-40~85	-40~85
Storage Temperature (°C)	-40~85	-40~85	-40~85	-40~85
Module Dimensions (L×W×H) (mm)	130×100×25	130×100×25	130×100×50	130×100×102

Application Details

Telecommunications Networks: Ensures efficient optical signal splitting for large-scale telecom systems.
FTTx Deployments: Ideal for fiber-to-the-home/building (FTTH/FTTB) applications.
Data Centers: Optimizes high-density signal distribution for seamless network operations.
CATV Systems: Distributes cable TV signals effectively with minimal loss.
Optical Test Equipment: Provides accurate splitting for laboratory and field measurements.
