Feature Details

  • Stable PLC Technology: Ensures consistent splitting performance and high optical accuracy.

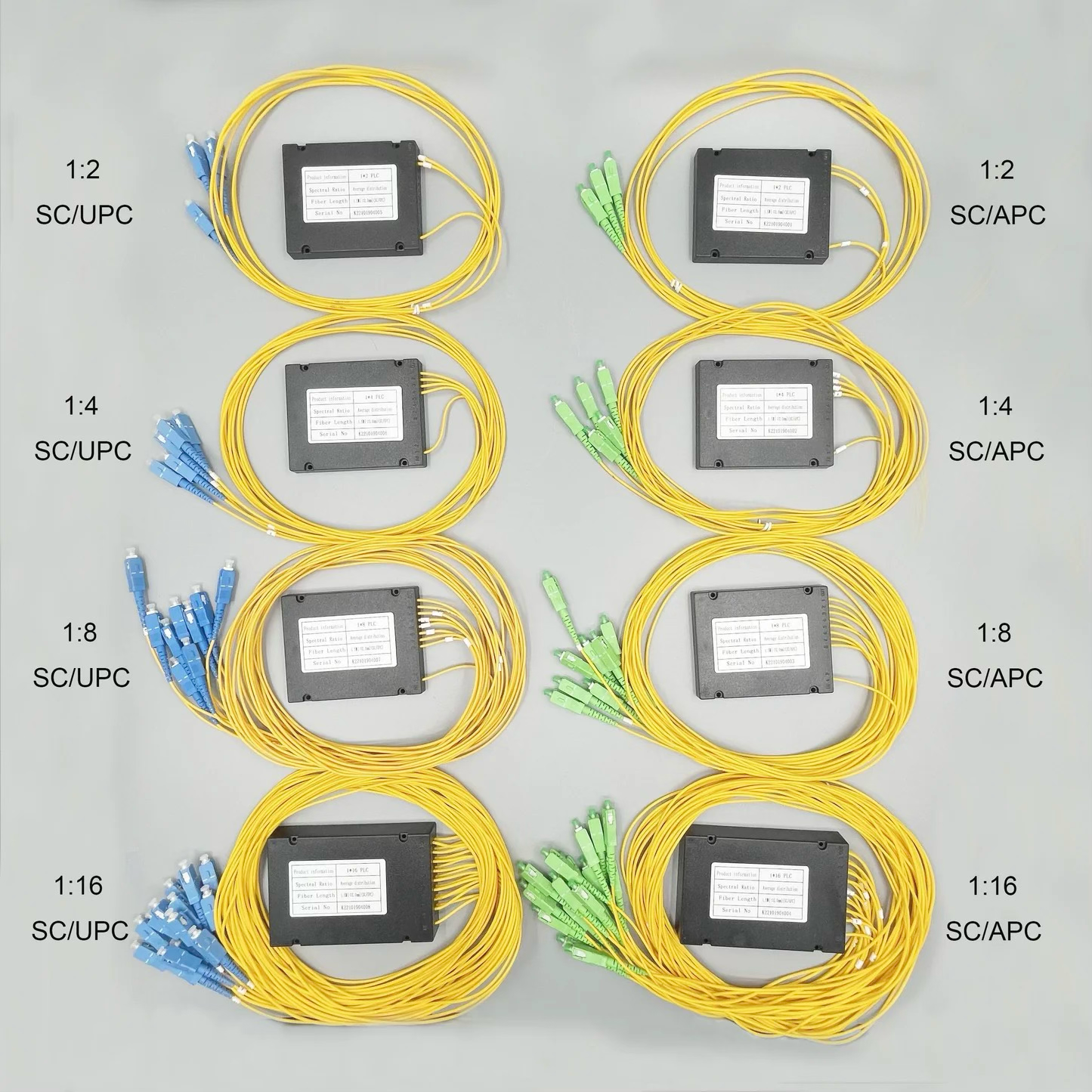

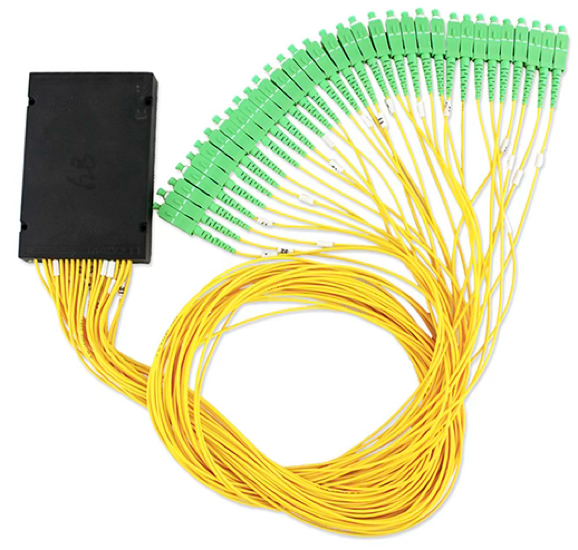

  • ABS Module Housing: Provides physical protection and facilitates easy integration into fiber distribution boxes.
  • Low Loss & High Uniformity: Minimizes signal loss and maintains balanced outputs across all channels.
  • Broad Compatibility: Supports multiple fiber types and connector configurations.
  • Durability: Designed to withstand wide temperature ranges and harsh environmental conditions.

Product Specifications

Parameter 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Insertion Loss (dB) 3.8 7.1 10.2 13.5 16.5 20.51 23.8
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0 2.5
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.5
Operating Wavelengths 1260~1650nm
Return Loss (dB)  UPC: 50 / APC: 55
Directivity (dB) 55
Input Fiber  Bend Insenstive SM Fiber (ITU G657A)
Output Fiber  Bend Insenstive SM Fiber (ITU G657A)
Max. Optic Power 300mw
Humidity Range 5% ~ 85% rh
Opreating Temperature -40 ~ +85℃
Storage Temperature -40 ~ +85℃
Mini Tube (Metal) Dimension (mm) (L*W*H) 50x4x4 50x7x4 60x12x4 80x20x6 100x40x6
ABS Module Dimension (mm) (L*W*H) 100x80x10 120x80x18 140x115x18
Packaging Option Bare Device, Mini Tube, ABS Module, LGX BOX,19’ 1U 2U Rack-Mount, ODF BOX

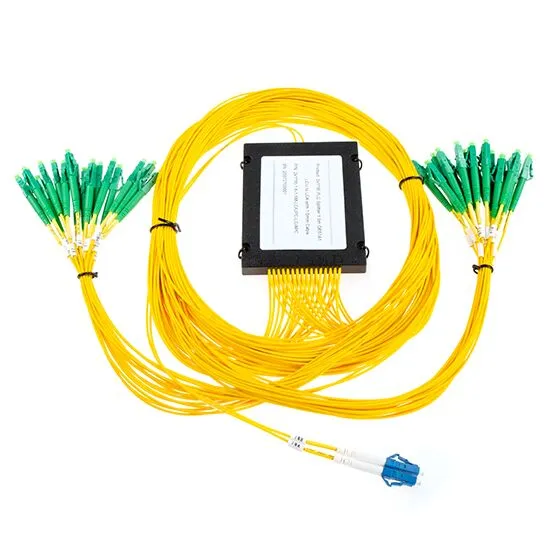

Parameter 2×2 2×4 2×8 2×16 2×32 2×64
Insertion loss(dB) 4.0 7.6 11 14.4 16.5 21
Uniformity(dB) ≤0.6 ≤0.8 ≤0.5 ≤0.6 ≤0.8 ≤1.2
Polarization-dependent
loss (dB)		 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.4 ≤0.4

Application Details


  • FTTH Deployments: Distributes optical signals from the central office to four subscribers.
  • Telecom Networks: Used in backbone and access layers for signal management.
  • Data Centers: Enables monitoring and structured optical cabling systems.
  • CATV Distribution: Ensures reliable and uniform signal delivery to multiple users.
  • Enterprise Networks: Provides efficient optical signal allocation in multi-building campuses
