INF Color Coded Blockless PLC Splitter (Mini)

Fiber Optic PLC Splitter is an essential passive component in Fiber to the Home network.

The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from central office to customer premises in FTTx and FTTH networks.

PLC Splitter offers a cost effective and space saving networking solution in optical transmission system.

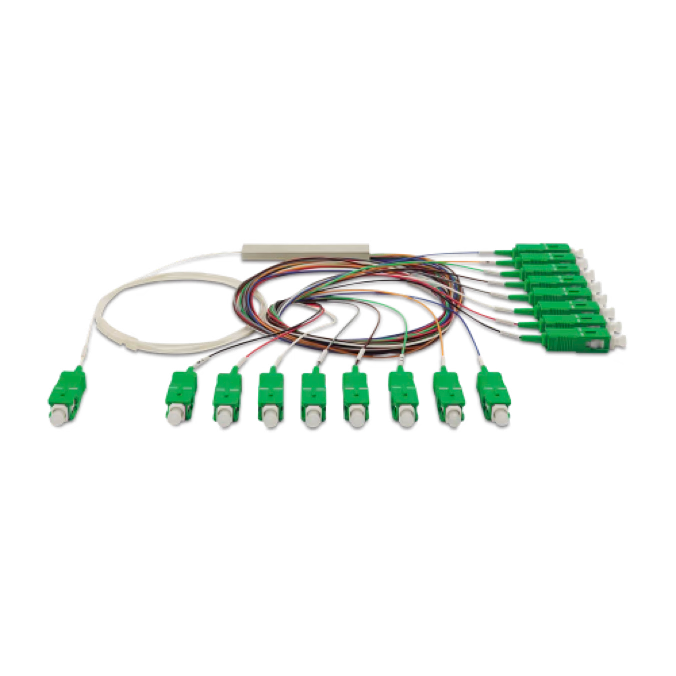

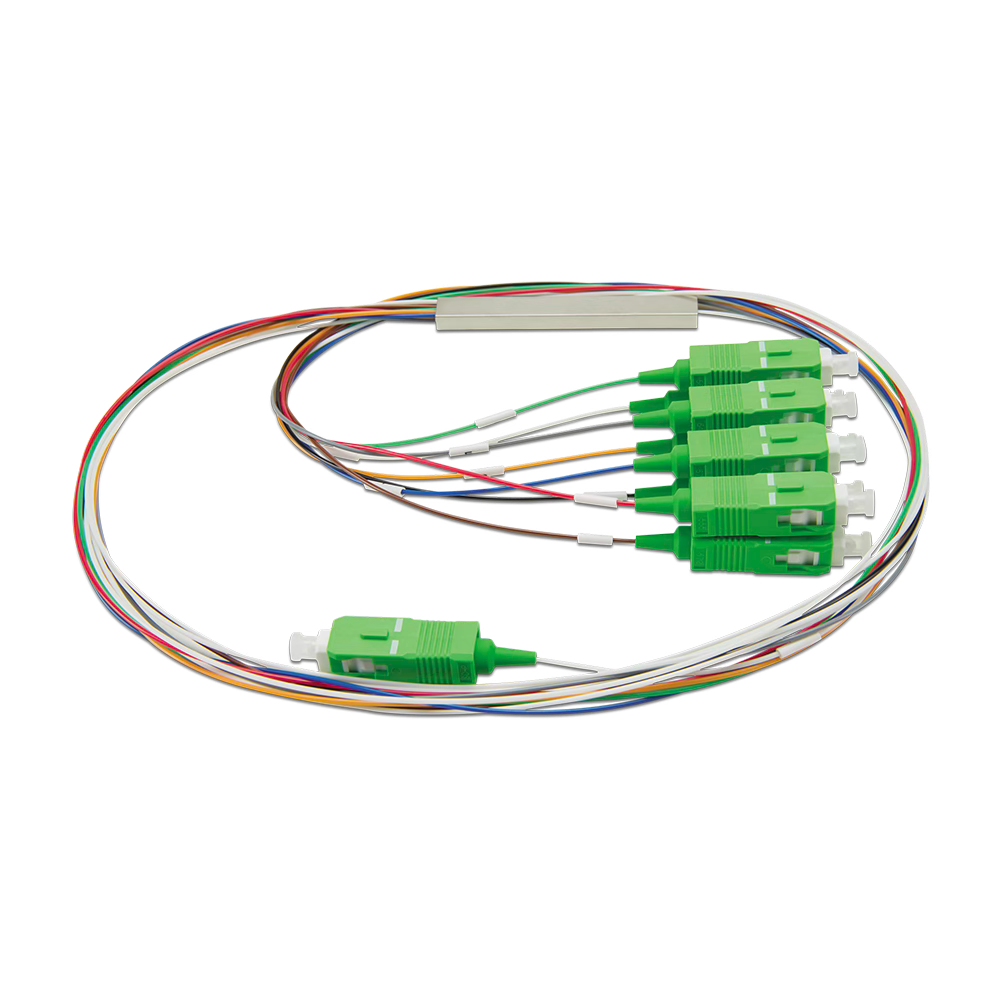

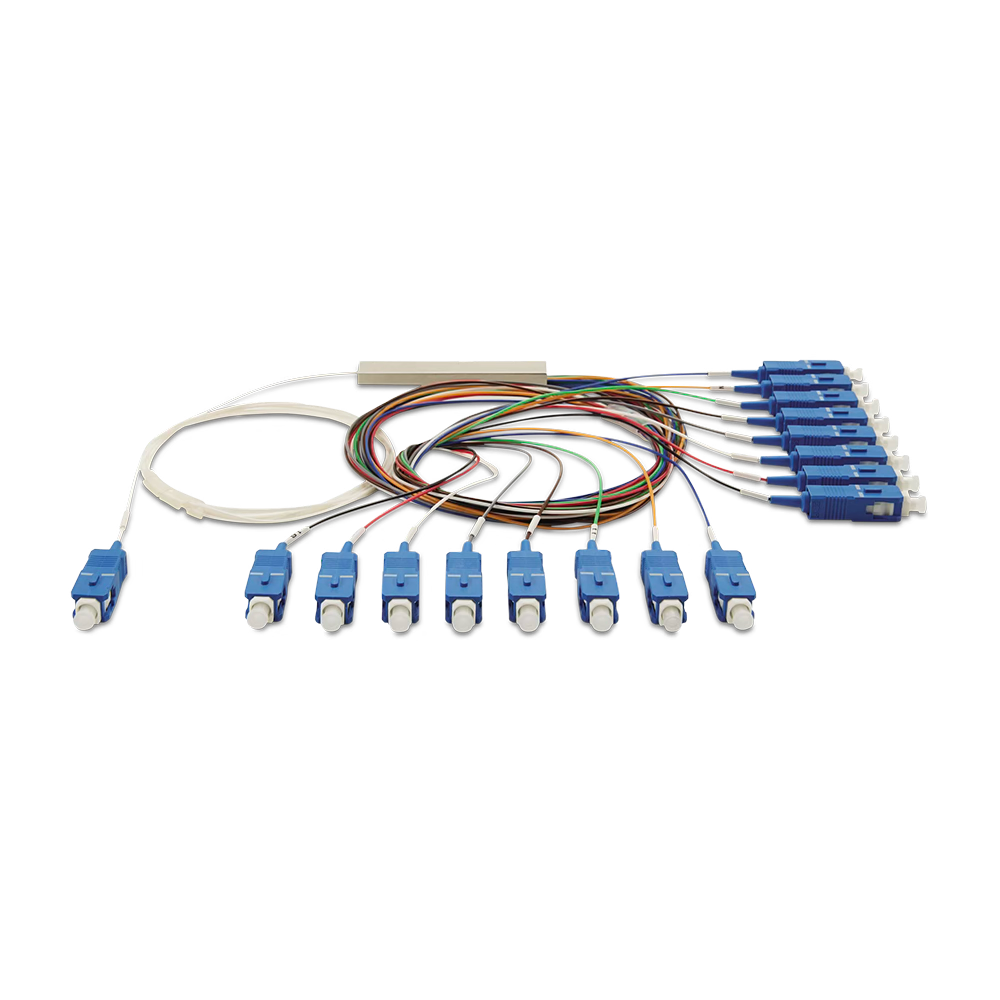

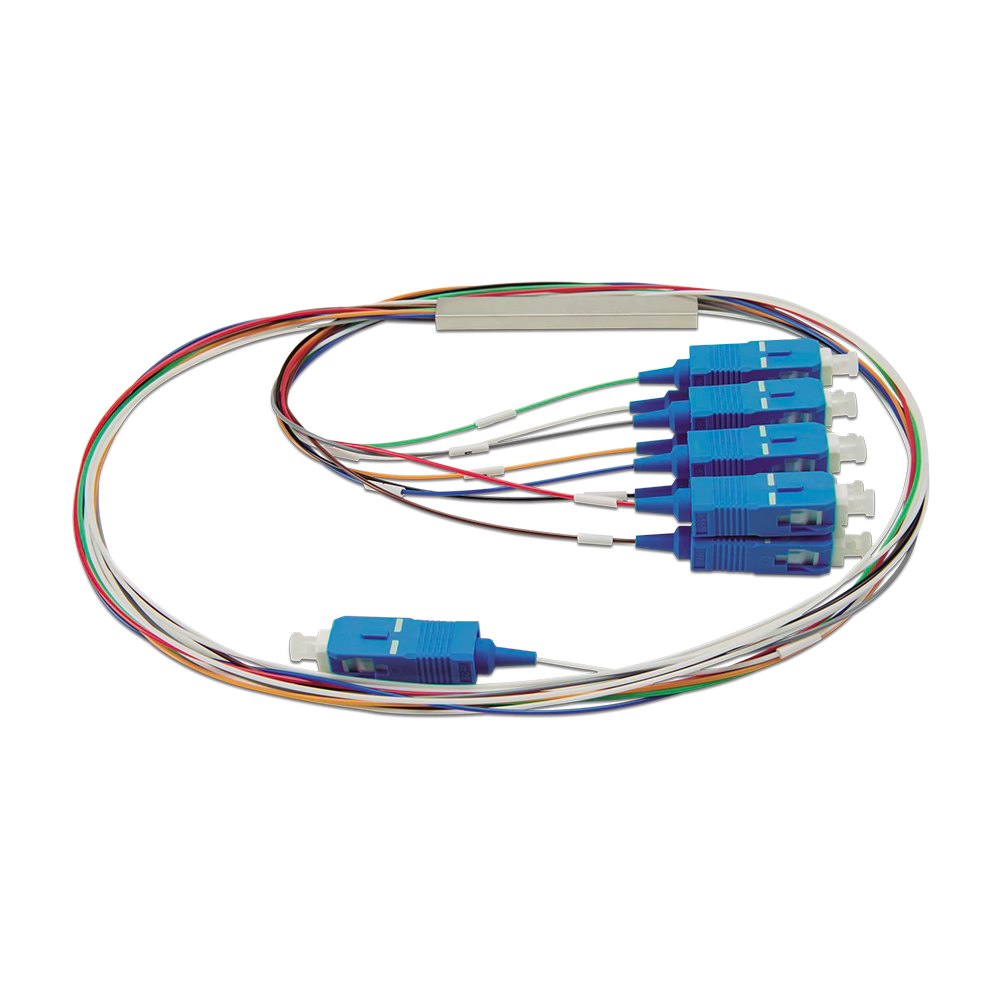

Blockless PLC Splitters packaged in a stainless steel module is with standard 900um loose tube cable. Blockless PLC Splitters as passive optical splitters are widely used for FTTH Passive Optical Network, including EPON (as EPON Splitter) and GPON (as GPON Splitter) .

PLC Splitters are available in a variety of port configurations, including 1×2 Optical Splitter, 1×4 Optical Splitter, 1×8 Optical Splitter, 1×16 Optical Splitter, 1×32 Optical Splitter, 1×64 Optical Splitter, etc.

Request Quote WhatsApp

Features:

Uniform power splitting
Compact package dimension
Low polarization dependent loss
Good channel-to-channel uniformity
Low Insertion Loss and high Return Loss
Environmentally and mechanically stable
Wide operating wavelength range from 1260nm to 1650nm

Applications:

Telecommunication networks
PON (Passive Optical Network)
FTTX, FTTH (Fiber to the Home)

Standards:

Telcordia GR-1209 and GR-1221

Specifications:
Table 1: Performance for 1×N PLC Splitter Note: All measurements are done at room temperature without connectors.

Port Configuration		1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)		1260~1650
Insertion Loss (dB)	Typ.	3.6	6.8	10.0	13.0	16.0	19.5
Insertion Loss (dB)	Max.	4.0	7.3	10.5	13.7	16.9	21.0
Loss Uniformity (dB)	Typ.	0.4	0.5	0.5	1.0	1.0	1.5
Loss Uniformity (dB)	Max.	0.6	0.6	0.8	1.2	1.5	2.5
Return Loss (dB)		55	55	55	55	55	55
PDL (dB)	Typ.	0.1	0.1	0.1	0.1	0.2	0.2
PDL (dB)	Max.	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)		55	55	55	55	55	55
Fiber Length (m)		1.0 or customized
Fiber Type		Corning SMF-28e or customized
Wavelength Dependent Loss (dB)	Typ.	0.2	0.2	0.2	0.3	0.3	0.3
Wavelength Dependent Loss (dB)	Max.	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~+85°C) (dB)	Typ.	0.3	0.3	0.3	0.4	0.4	0.4
Temperature Stability (-40~+85°C) (dB)	Max.	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)		-40~+85°C
Storage Temperature (°C)		-40~+85°C

Table 2: Performance for 1×N PLC Splitter
Note: All measurements are done at room temperature with connectors.

Port Configuration		1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)		1260~1650
Insertion Loss (dB)	Typ.	4.0	7.0	10.3	13.5	16.5	20.0
Insertion Loss (dB)	Max.	4.5	7.7	11.0	14.2	17.5	21.5
Loss Uniformity (dB)	Typ.	0.4	0.5	0.5	1.0	1.0	1.5
Loss Uniformity (dB)	Max.	0.6	0.6	0.8	1.2	1.5	2.5
Return Loss (dB)		55	55	55	55	55	55
PDL (dB)	Typ.	0.1	0.1	0.1	0.1	0.2	0.2
PDL (dB)	Max.	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)		55	55	55	55	55	55
Fiber Length (m)		1.0 or customized
Fiber Type		Corning SMF-28e or customized
Wavelength Dependent Loss (dB)	Typ.	0.2	0.2	0.2	0.3	0.3	0.3
Wavelength Dependent Loss (dB)	Max.	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~+85°C) (dB)	Typ.	0.3	0.3	0.3	0.4	0.4	0.4
Temperature Stability (-40~+85°C) (dB)	Max.	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)		-40~+85°C
Storage Temperature (°C)		-40~+85°C

Table 3: Performance for 2×N PLC Splitter
Note: All measurements are done at room temperature without connectors.

Port Configuration	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260~1650
Insertion Loss (dB)	4.0	7.6	11.0	14.5	17.5	21.0
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5	2.5
Return Loss (dB)	55	55	55	55	55	55
PDL (dB)	0.2	0.2	0.4	0.4	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Fiber Length (m)	1.0 or customized
Fiber Type	Corning SMF-28e or customized
Wavelength Dependent Loss (dB)	0.5	0.5	0.5	0.5	0.5	0.5
Temperature Stability (-40~+85°C) (dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~+85°C
Storage Temperature (°C)	-40~+85°C

Table 4: Performance for 2×N PLC Splitter
Note: All measurements are done at room temperature with connectors.

Port Configuration	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260~1650
Insertion Loss (dB)	4.5	8.1	11.6	15.0	18.0	21.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5	2.5
Return Loss (dB)	55	55	55	55	55	55
PDL (dB)	0.2	0.2	0.4	0.4	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Fiber Length (m)	1.0 or customized
Fiber Type	Corning SMF-28e or customized
Wavelength Dependent Loss (dB)	0.5	0.5	0.5	0.5	0.5	0.5
Temperature Stability (-40~+85°C) (dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~+85°C
Storage Temperature (°C)	-40~+85°C

Package Dimension

Size L×W×H (mm)	Port
60×4×7	1×2	2×2	1×4	2×4	1×8	2×8
60×4×12	1×16			2×16
80×6×20	1×32			2×32
100×6×40	1×64			2×64

Color Code for Ouptut fibers of PLC Splitters:

1×2	1.Blue, 2.Orange
1×4	1.Blue, 2.Orange, 3.Green, 4.Brown
1×8	1.Blue, 2.Orange, 3.Green, 4.Brown, 5.Gray, 6.White, 7.Red, 8.Black
1×16	1.Blue, 2.Orange, 3.Green, 4.Brown, 5.Gray, 6.White, 7.Red, 8.Black 9.Blue, 10.Orange, 11.Green, 12.Brown, 13.Gray, 14.White, 15.Red, 16.Black
1×32	1.Blue, 2.Orange, 3.Green, 4.Brown, 5.Gray, 6.White, 7.Red, 8.Black 9.Blue, 10.Orange, 11.Green, 12.Brown, 13.Gray, 14.White, 15.Red, 16.Black 17.Blue, 18.Orange, 19.Green, 20.Brown, 21.Gray, 22.White, 23.Red, 24.Black 25.Blue, 26.Orange, 27.Green, 28.Brown, 29.Gray, 30.White, 31.Red, 32.Black
1×64	1.Blue, 2.Orange, 3.Green, 4.Brown, 5.Gray, 6.White, 7.Red, 8.Black 9.Blue, 10.Orange, 11.Green, 12.Brown, 13.Gray, 14.White, 15.Red, 16.Black 17.Blue, 18.Orange, 19.Green, 20.Brown, 21.Gray, 22.White, 23.Red, 24.Black 25.Blue, 26.Orange, 27.Green, 28.Brown, 29.Gray, 30.White, 31.Red, 32.Black 33.Blue, 34.Orange, 35.Green, 36.Brown, 37.Gray, 38.White, 39.Red, 40.Black 41.Blue, 42.Orange, 43.Green, 44.Brown, 45.Gray, 46.White, 47.Red, 48.Black 49.Blue, 50.Orange, 51.Green, 52.Brown, 53.Gray, 54.White, 55.Red, 56.Black 57.Blue, 58.Orange, 59.Green, 60.Brown, 61.Gray, 62.White, 63.Red, 64.Black

Ordering Information:

Brand	A&T
Name	CCPLC: Color Coded PLC Splitter
Port	12: 1×2 14: 1×4 18: 1×8 116: 1×16 132: 1×32 164: 1×64 22: 2×2 24: 2×4 28: 2×8 216: 2×16 232: 2×32 264: 2×64
Package	B: blockless
Cable Diameter	9: 900um
Cable Length	0.5: 0.5m 1: 1m 1.5: 1.5m 2: 2m; etc
Connector	SU: SC/UPC SA: SC/APC FU: FC/UPC FA: FC/APC LU: LC/UPC LA: LC/APC None=without connectors
