A&T Fiber Optic PLC Splitter is an essential passive component in Fiber to the Home network.
The full
name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology
and is used for optical power allocation from central office to customer premises in FTTx and FTTH
networks.
PLC Splitter offers a cost effective and space saving networking solution in optical
transmission system.

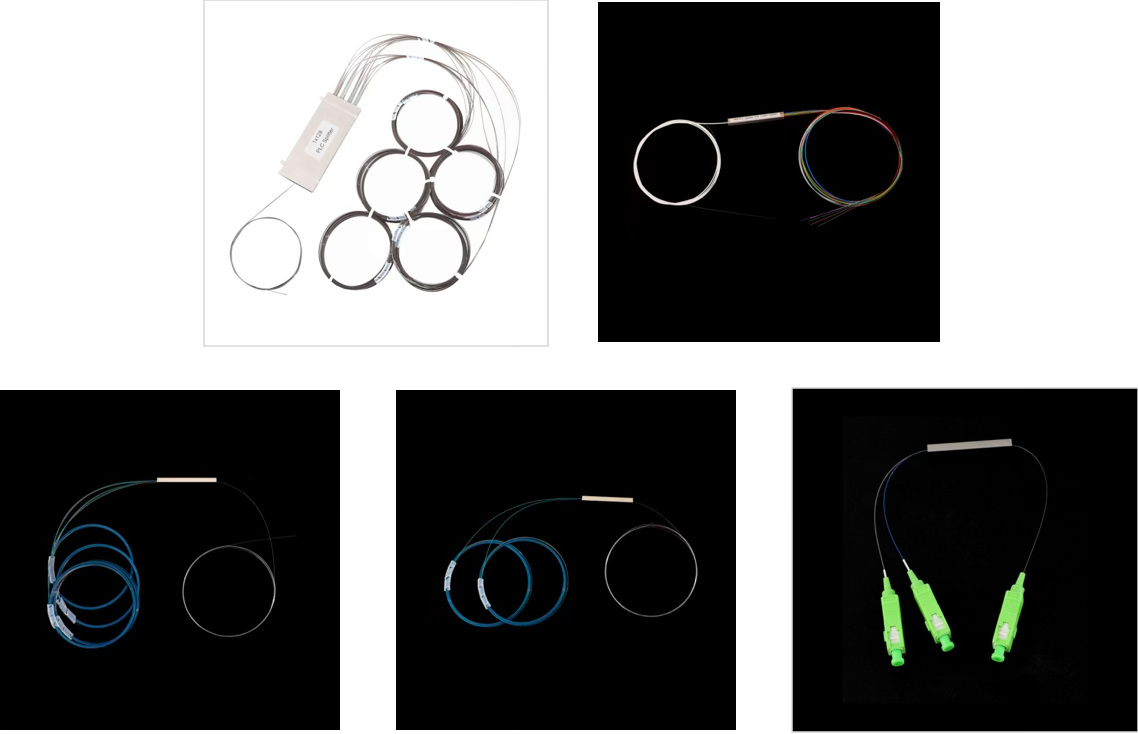

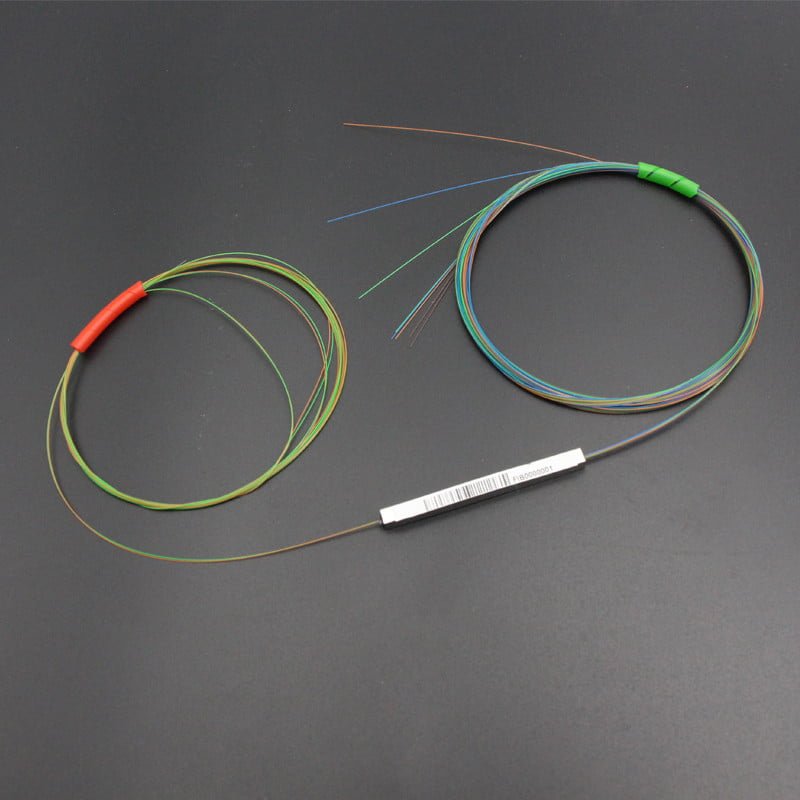

Bare Fiber PLC Splitters are not terminated with fiber
optic connectors and could be spliced with optical fibers in distribution cables and drop
cables. Bare Fiber PLC Splitters as passive optical splitters are widely used for FTTH Passive
Optical Network, including EPON (as EPON Splitter) and GPON (as GPON Splitter) .
PLC Splitters
are available in a variety of port configurations, including 1×2 PLC Splitter, 1×4 PLC Splitter,
1×8 PLC Splitter, 1×16 PLC Splitter, 1×32 PLC Splitter, 1×64 PLC Splitter, etc. with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
Features:
Applications:
Standards:
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typ. | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max. | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 | |
| Loss Uniformity (dB) | Typ. | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 1.5 |
| Max. | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
| PDL (dB) | Typ. | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
| Max. | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
| Fiber Length (m) | 1.0 or customized | ||||||
| Fiber Type | Corning SMF-28e or customized | ||||||
| Wavelength Dependent Loss (dB) | Typ. | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max. | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
| Temperature Stability (-40~+85°C) (dB) | Typ. | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max. | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (°C) | -40~+85°C | ||||||
| Storage Temperature (°C) | -40~+85°C | ||||||
| Port Configuration | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.5 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 2.0 | 2.5 | 2.5 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Fiber Length (m) | 1.0 or customized | |||||
| Fiber Type | Corning SMF-28e or customized | |||||
| Wavelength Dependent Loss (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~+85°C) (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~+85°C | |||||
| Storage Temperature (°C) | -40~+85°C | |||||
| Size L×W×H (mm) | Port | ||||||||
| 40×4×4 | 1×2 | 2×2 | 1×4 | 2×4 | 1×8 | 2×8 | |||
| 50×4×7 | 1×16 | 2×16 | 1×32 | 2×32 | |||||
| 60×4×12 | 1×64 | 2×64 | |||||||
| Brand | A&T |
| Name | PLC: PLC Splitter |
| Port | 12: 1×2 14: 1×4 18: 1×8 116: 1×16 132: 1×32 164: 1×64 22: 2×2 24: 2×4 28: 2×8 216: 2×16 232: 2×32 264: 2×64 |
| Package | F: bare fiber |
| Output Fiber | 52: 2 fibers ribbon 54: 4 fibers ribbon 58: 8 fibers ribbon 5: 250um bare fibers |
| Cable Length | 0.5: 0.5m 1: 1m 1.5: 1.5m 2: 2m; etc |
| Connector | None=without connectors MTP: MTP/PC MTA: MTP/APC MPO: MPO/PC MPA: MPO/APC |
