With the later network deployment, some network units gradually transformed from multi-mode equipment to single-mode equipment. In the case of the coexistence of the two modes, the mode conversion line is a feasible product for interconnection between the two.

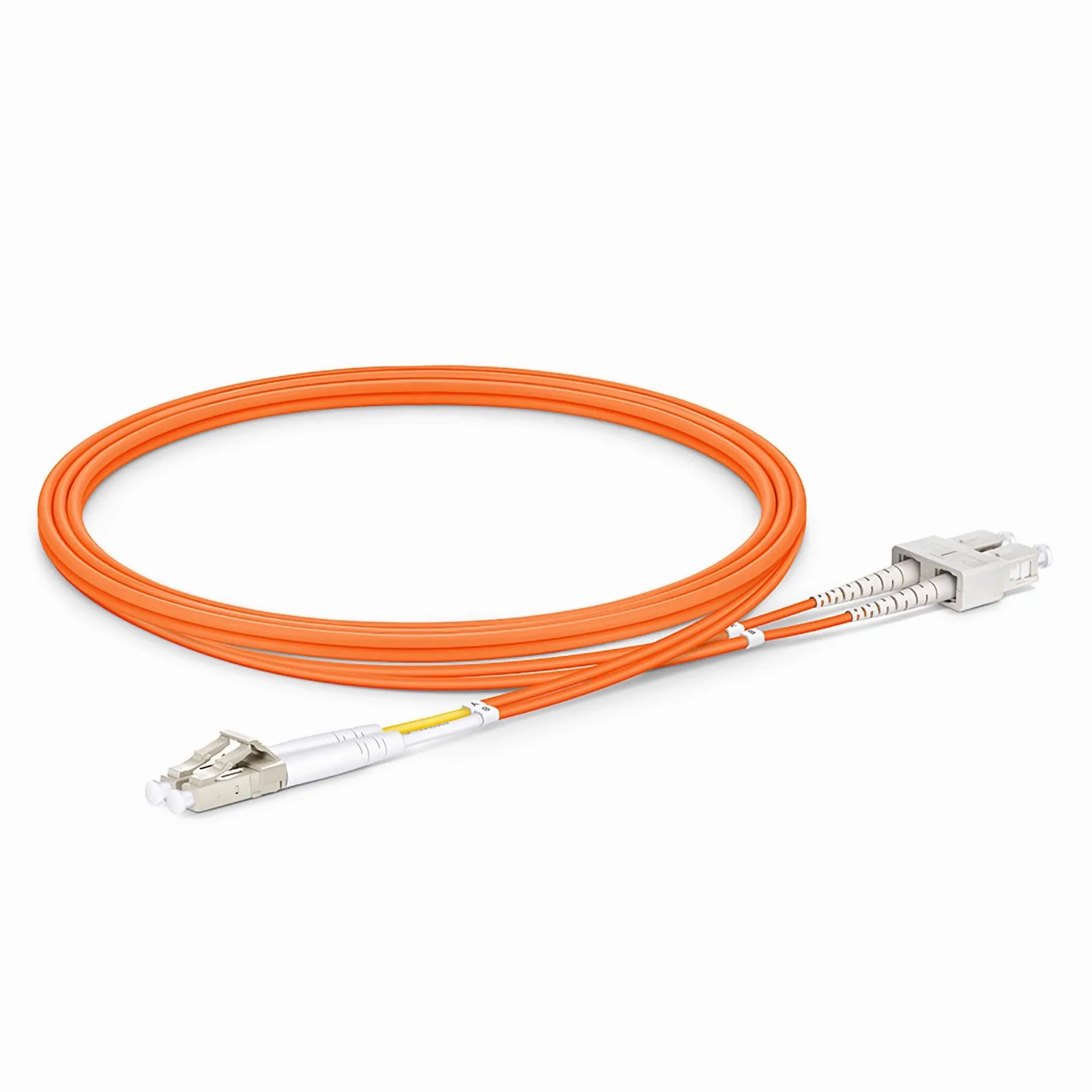

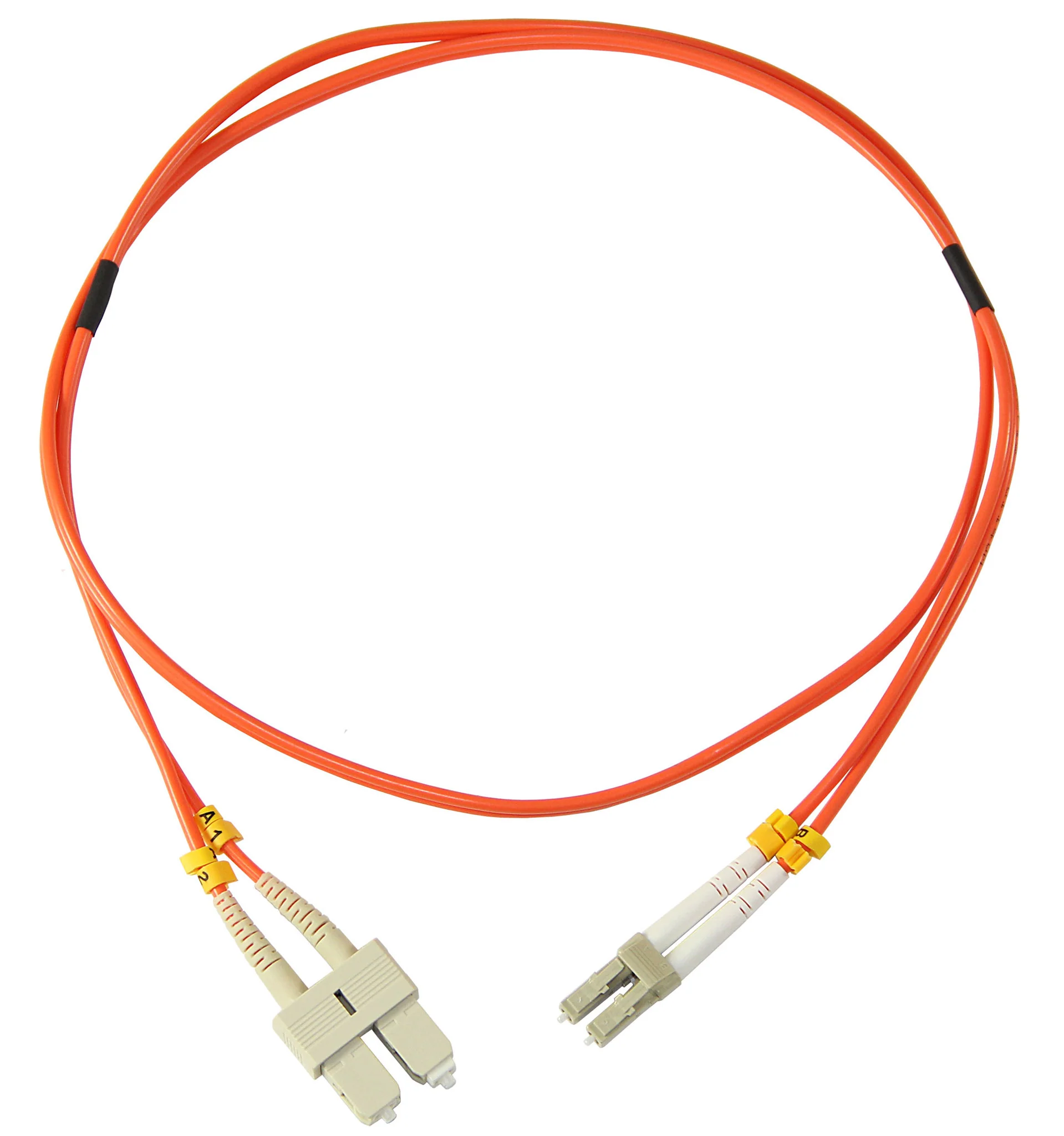

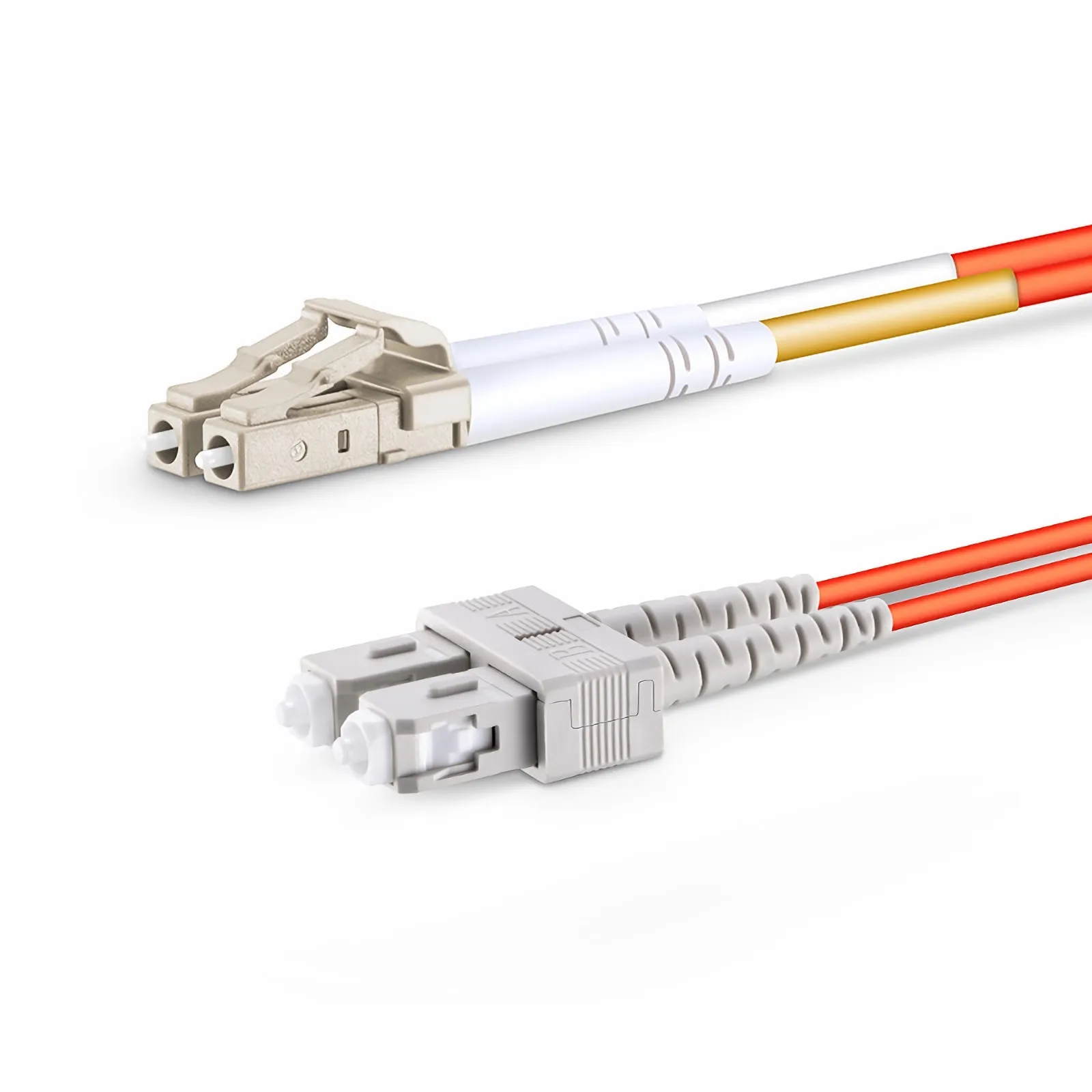

High-Quality Fiber: Engineered with precision, the SC To LC Duplex Patch Cable integrates high-quality fiber that guarantees exceptional signal transmission with minimal loss less than 0.25dB.
Grade B Connectors: The connectors employed in this cable meet even the stringent requirements of grade B standards, ensuring superior performance and durability.
Thermal Stability and Environmental Adaptability: Crafted with superior materials, this SC To LC Duplex Patch Cable excels in thermal stability, maintains high hardness, and adapts seamlessly to diverse environmental conditions.
CCTC Ceramic Ferrule: Equipped with CCTC ceramic ferrules, this cable ensures optimal alignment and coupling, contributing to efficient signal propagation.
| Specifications | SC,LC,FC,E2000 | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 | 1310, 1490,1550 | 850,1300 | 1310,1490,1550 | 850,1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 |
