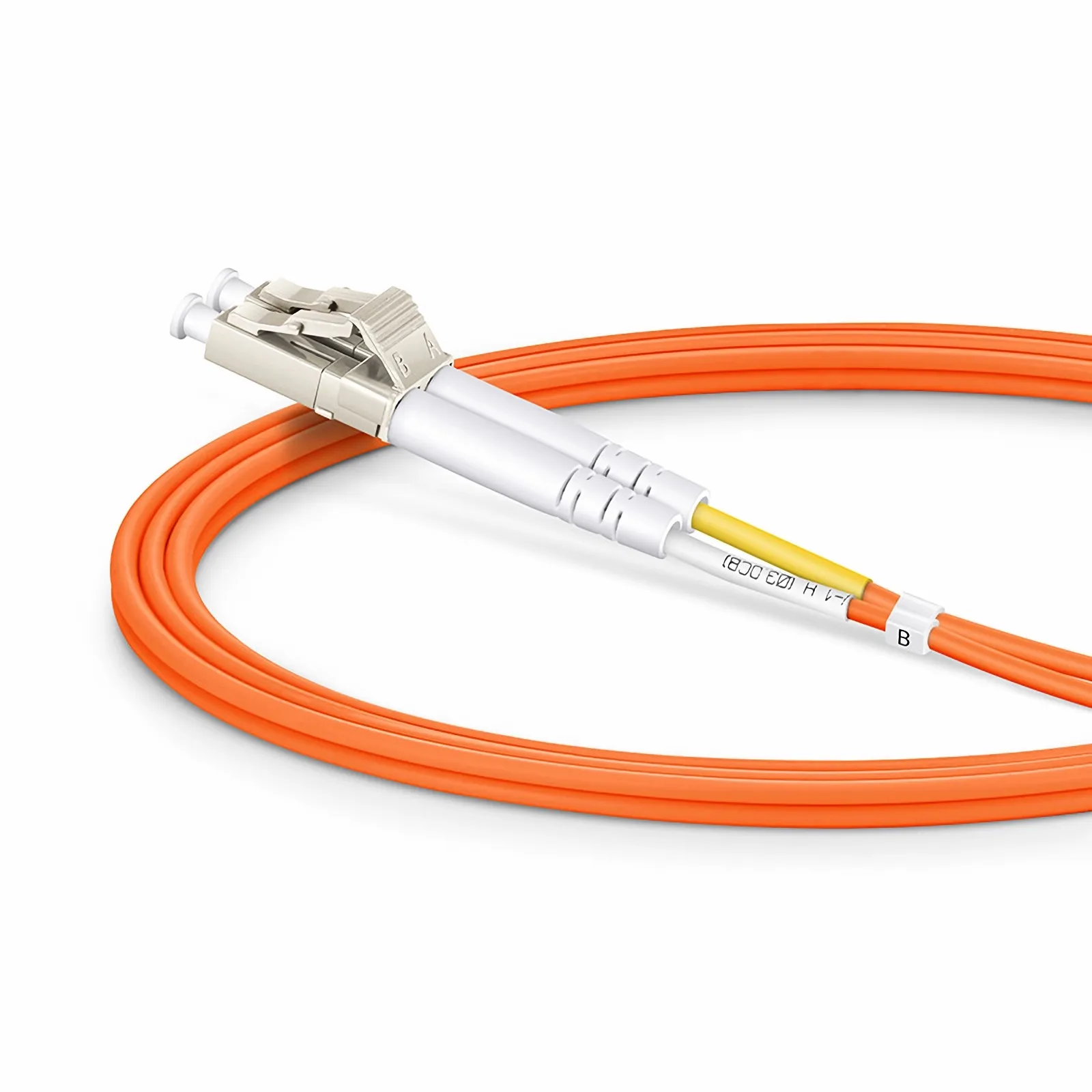

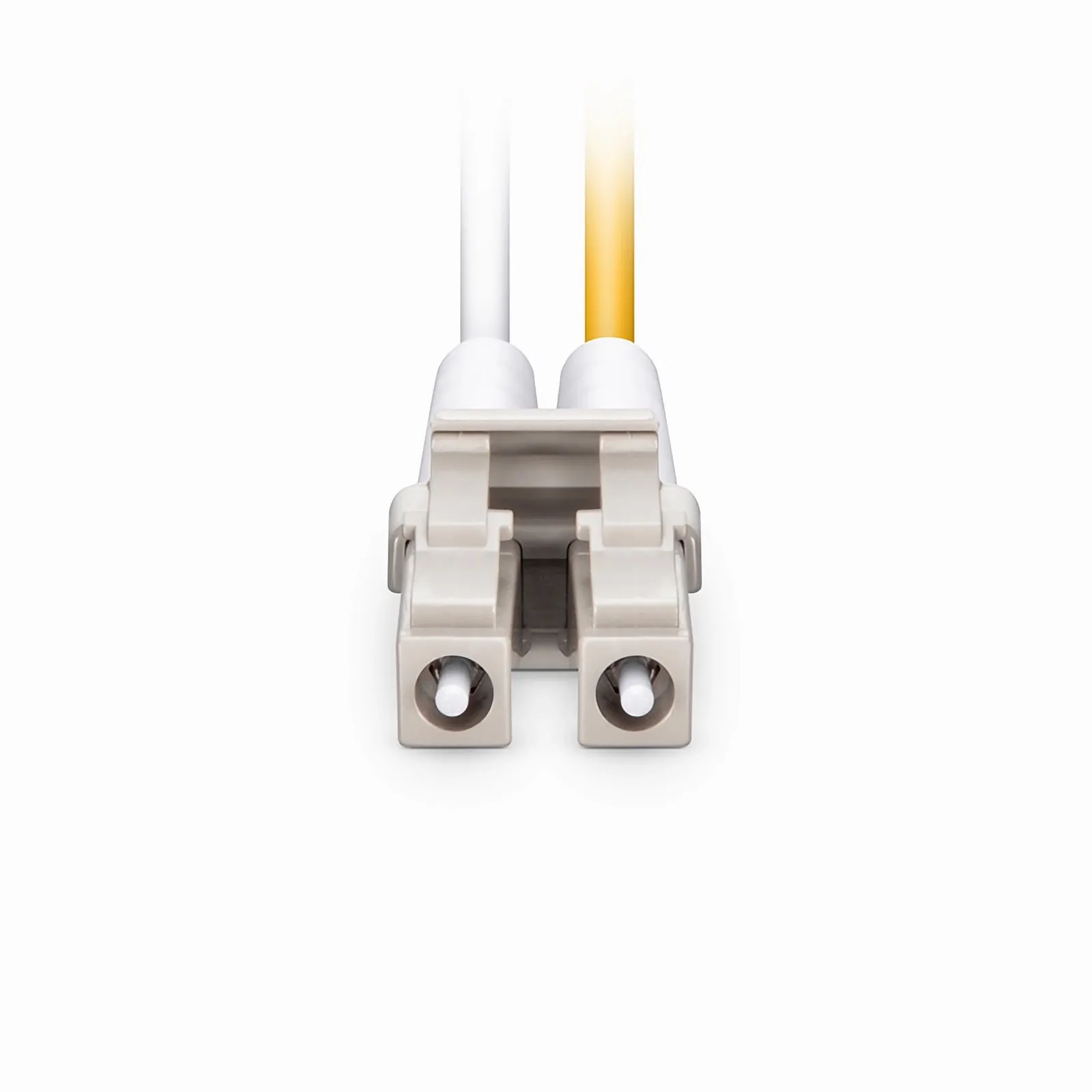

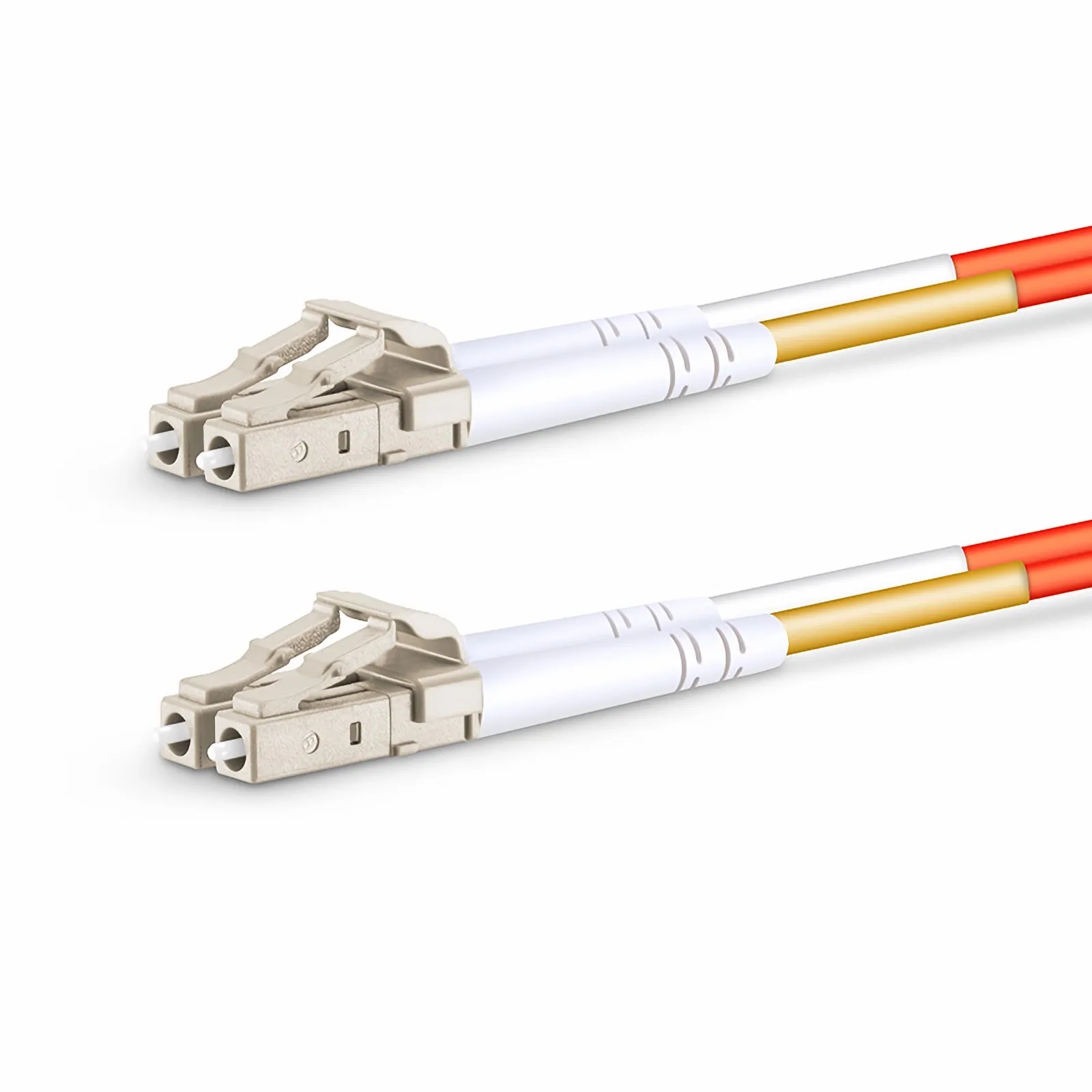

The 3.0MM LC PC Duplex Patchcord PVC by OPTICO is designed with a gradual refractive fiber core and a unique groove design, offering low loss and excellent macrobending characteristics. This high-quality fiber jumper enables compact wiring and ensures the normal transmission of optical signals even when the cable is bent. With a focus on FTTH and data centers, this patchcord utilizes G.651 multimode fiber, compliant with RoHS standards.
| Specifications | SC,LC,FC,E2000 | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 | 1310, 1490,1550 | 850,1300 | 1310,1490,1550 | 850,1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 |
Enhanced Space Utilization: With its compact wiring capabilities, the 3.0MM LC PC Duplex Patchcord PVC maximizes space utilization in fiber management systems, optimizing the overall network design.
Versatile Application: Suitable for FTTH and data centers, this patchcord is versatile and adaptable to various optical cable structures, making it a reliable choice for diverse networking applications.
Wide Operating Temperature Range: The 3.0MM LC PC Duplex Patchcord PVC operates flawlessly in a broad temperature range from -40°C to +75°C, making it suitable for a variety of environmental conditions.
Conformance to RoHS Standards: Complying with RoHS standards ensures the patchcord's environmental friendliness and safety in your network infrastructure.
