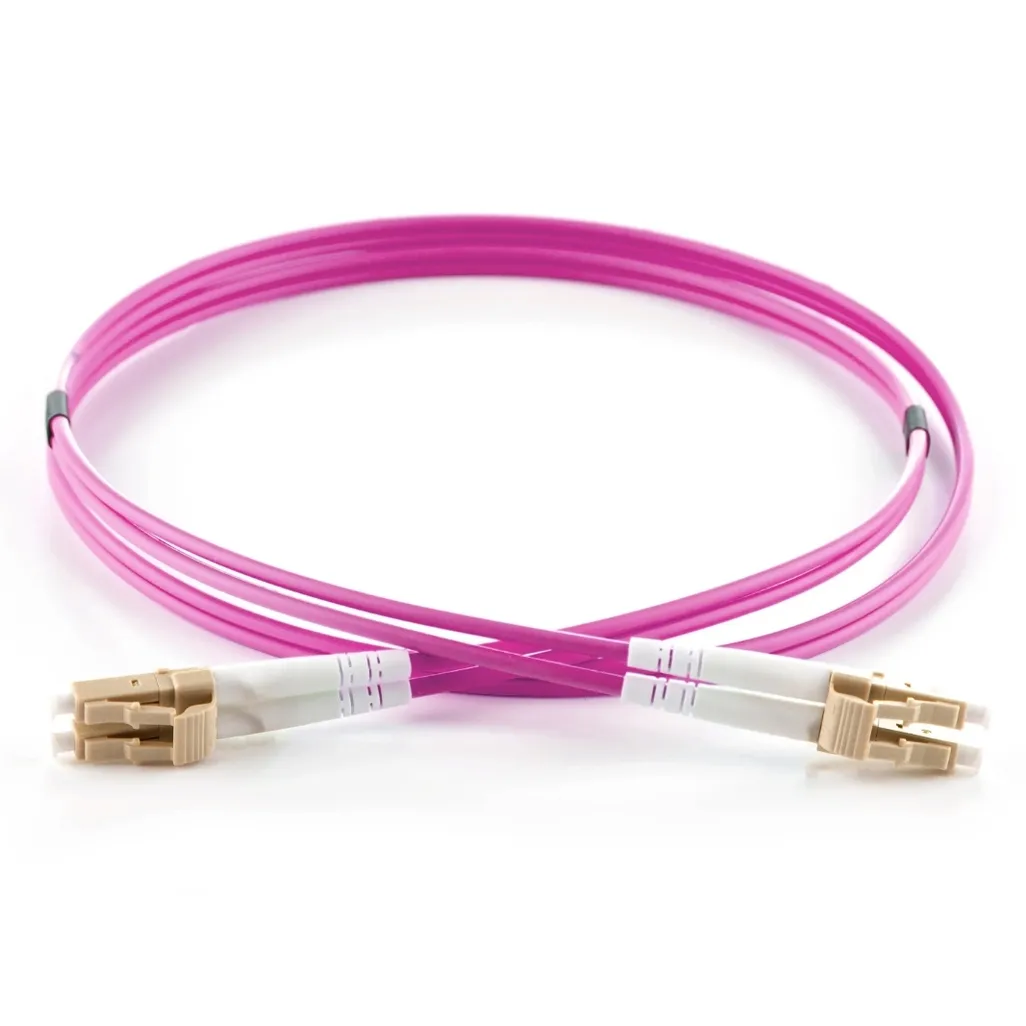

Lc To Lc Duplex MM/ OM4 Fiber Patch Cord 6135

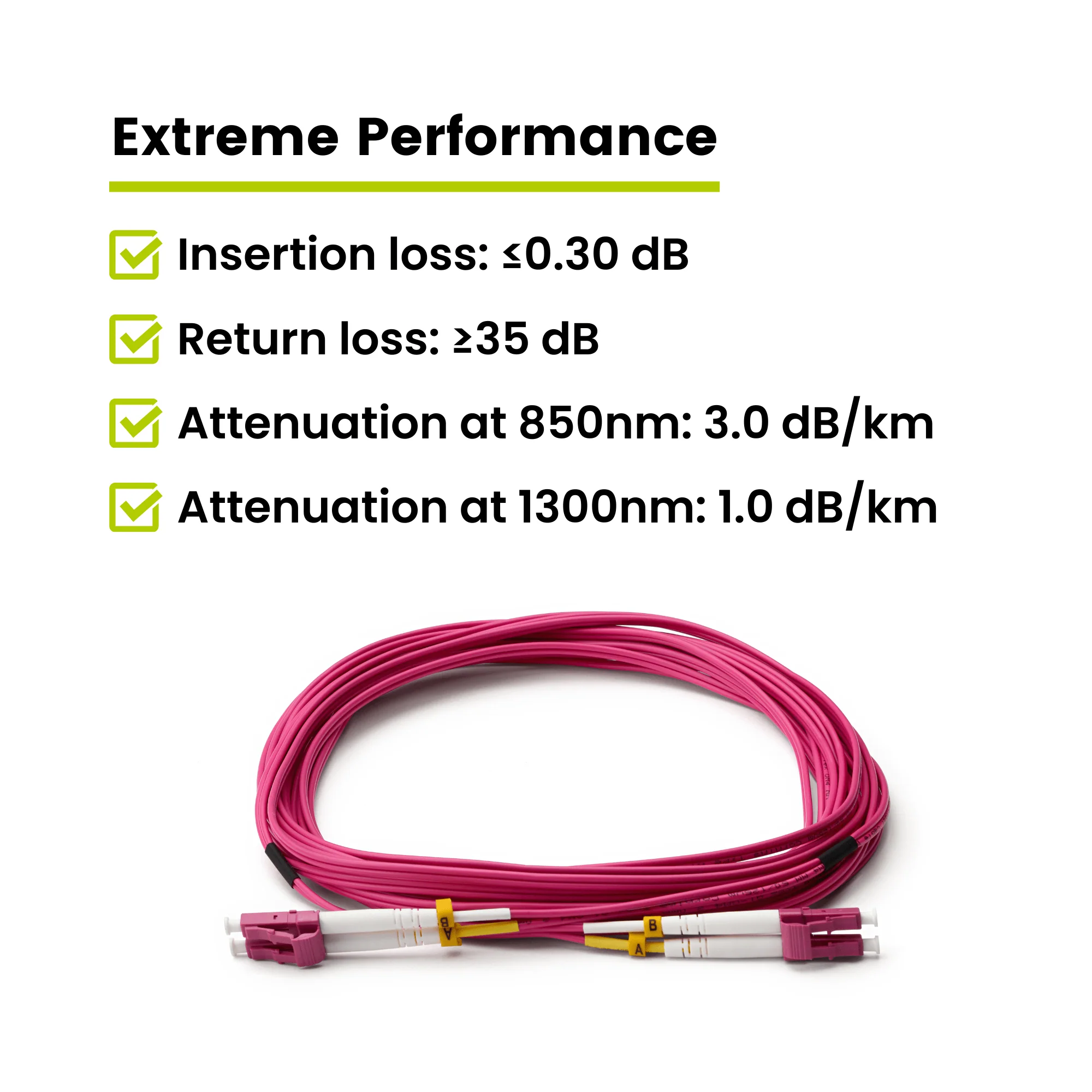

Lc To Lc Duplex MM/ OM4 Fiber Patch Cord 6136

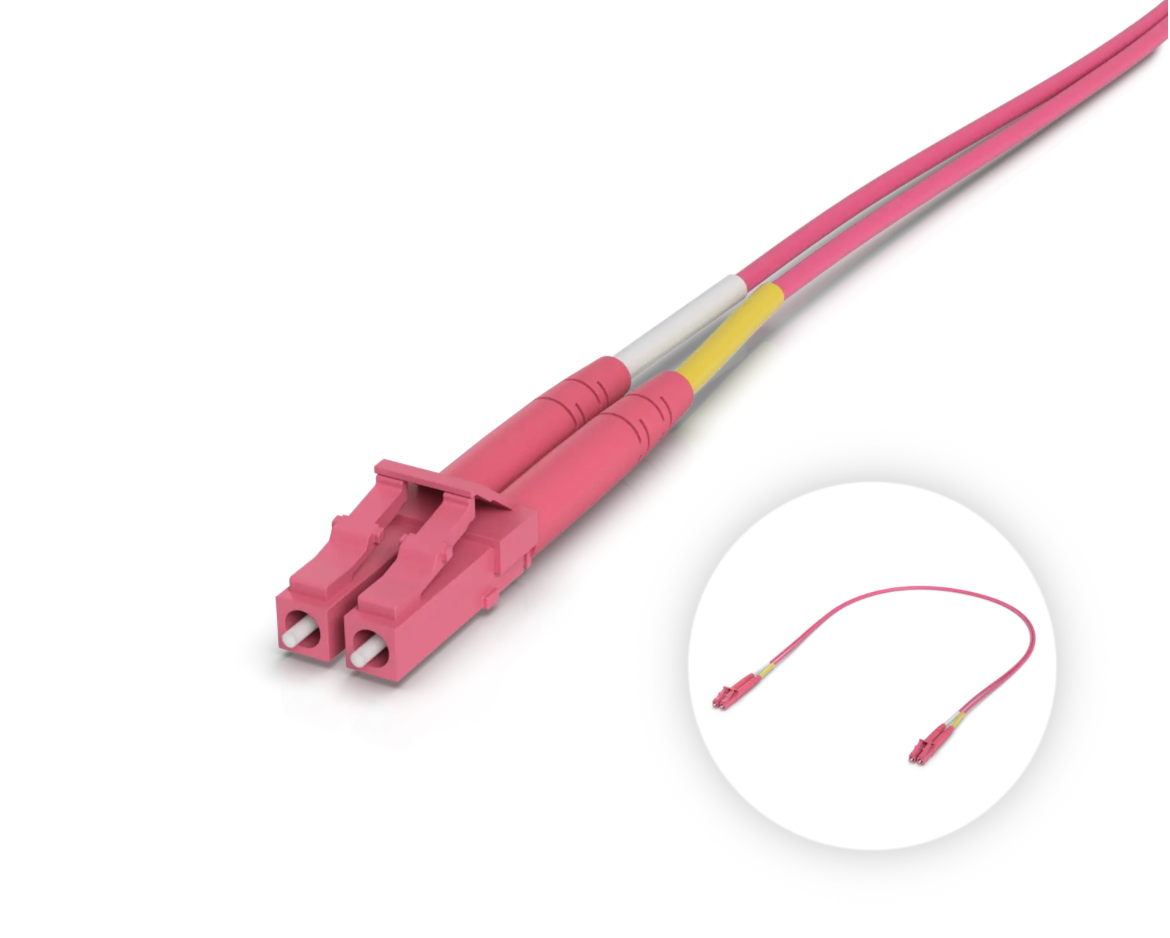

Lc To Lc Duplex MM/ OM4 Fiber Patch Cord 6137

LC Patch Cord

Lc To Lc Duplex MM/ OM4 Fiber Patch Cord

Address: C-46, Block C, Noida Sector 58, Gautam Buddh Nagar, Uttar Pradesh - 201301
Phone: +91-8826312936
Email: enquiry@infofiber.in

Full specification customization supported.
Precision zirconia sleeve connectors ensure low insertion loss and maintain good stability.
Duplex Zipcord structure reduces the risk of damage caused by crimping.
Bend-insensitive, with a minimum fiber optic bending radius of 7.5mm, facilitating flexible cable routing.
Compliant with IEC 61754-7 and EIA/TIA 604-5 standards.

Request Quote WhatsApp

Product Profile

This Lc to Lc Duplex OM4 Fiber Patch Cable features a full-duplex design, occupying less port space. It is compatible with high-density switches, ODF patch panels, and integrated cabinet cabling, effectively saving space in the data center. The LC connector on this patch cord features a snap-lock design, ensuring easy insertion and removal, a secure connection, and resistance to loosening, making it suitable for frequent debugging and line overhauls.

The Lc to Lc OM4 Fiber Patch Cable is primarily used for short-distance patching between optical ports, supporting high-speed optical signal transmission. Compared to the OM3 fiber optic patch cord, the OM4 version offers higher bandwidth and longer transmission distances, perfectly adapting to high-speed short-distance Ethernet scenarios such as 10G/40G/100G, making it the preferred solution for high-performance LAN cabling.

Product specifications

Fiber Type	Multi-mode (OM4)
Connector Type	LC UPC Duplex
Insertion Loss	≤0.25dB
Return Loss	≥35dB
Min. Bend Radius (Optical Fiber)	7.5mm
Repeatability	≤0.1dB
Durability	≤0.2dB
Interchangeability	≤0.2dB
Tensile Strength	0.9mm(9N);2.0mm(70N);3.0mm(75N)
Connector Durability	≥1000次
Storage Temperature	-40℃ ~ +85℃
Operating Temperature	-40℃ ~ +85℃
