ST SM Plug-In Fixed Fiber Optic Attenuator

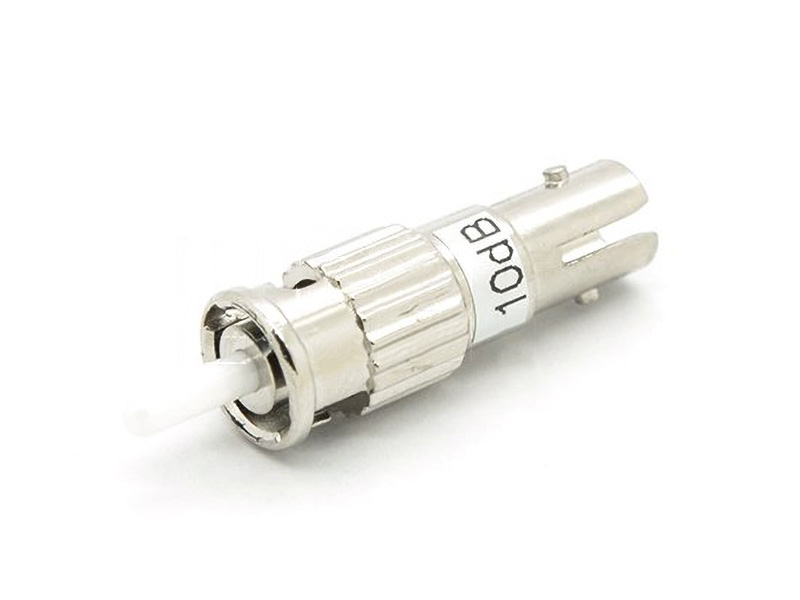

ST SM Plug-In Fixed Fiber Optic Attenuator 5949

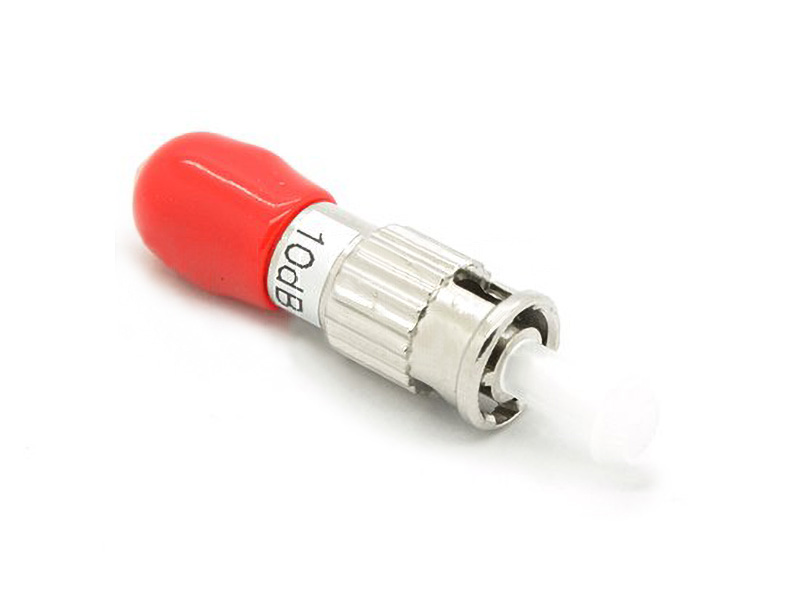

ST SM Plug-In Fixed Fiber Optic Attenuator 5950

Attenuator

ST SM Plug-In Fixed Fiber Optic Attenuator

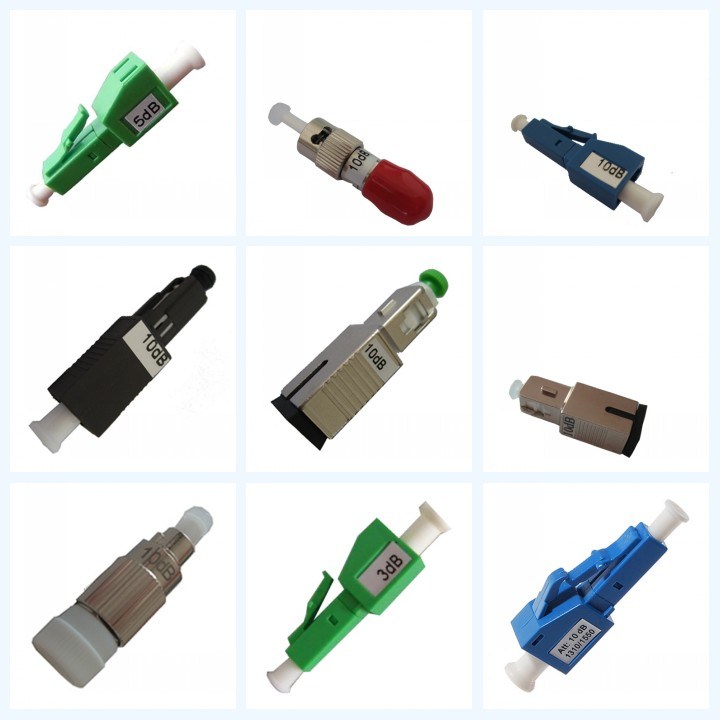

Fiber optic attenuator is able to reduce optical power and limit the optical power received by the photodetector within the limits of the optical receiver. We offer a wide range of fiber optic attenuators, SC attenuator, FC attenuator, LC attenuator, ST attenuator, etc. Fixed Fiber Optic Attenuator has different attenuation values from 1dB~30dB, 5dB attenuator, 10dB attenuator, 15dB attenuator, 20dB attenuator, 30dB attenuator for example. Fixed Fiber optic attenuator has female to female adapter type attenuator and male to female plug-in type attenuator. Female to female FC Fiber Optic Attenuator is able to couple from FC connector to FC connector, while male to female FC Fiber Optic Attenuator from FC adapter to FC connector. The combination of attenuation film in female to female FC attenuator or attenuation fiber in male to female FC attenuator and precision molded polymer/metal housing provides reliable and stable optical attenuation performance.

Request Quote WhatsApp

Feature Details

Accurate Signal Control: Ensures stable and consistent attenuation to maintain optimal network performance.
Durable Construction: Built to endure frequent use in challenging conditions.
Efficient Performance: Low insertion loss and high return loss for superior optical transmission.
Versatile Compatibility: Suitable for a wide range of single mode fiber applications.
Easy Installation: Male/female plug-in configuration simplifies network integration

Product Specifications

Fiber Connector	ST/UPC
Transfer Mode	Single mode
Connector Gender	Fixed Male to Female
Attenuation Range	0-25dB
Attenuation Accuracy	±0.5dB(1dB-10dB) ；±1.0dB(11dB-25dB)
Available Wavelengths	1310nm,1550nm,1310&1550nm
Wavelength Dependence	＜0.3dB Change in insertion loss for 1310-1550nm
Return Loss	≥50dB(UPC) ；≥60dB(APC)
Polarization Dependent Loss	≤0.2dB
Temperature Range	-40-80°C(≤0.2dB in insertion loss)
Humidity Range	+/-0.2dB Change in 10% to 90% relative Humidity Range
Vibration	≤0.1dB Change between 10Hz to 55Hz
Drop	+/-0.2dB after 8 drops from 1.8meters onto a hard surface
Maximum Optical Input Power	200mW

Application Details

Telecommunication Networks: Regulates signal strength for reliable transmission.
Data Centers: Balances optical signals for efficient data processing.
FTTH Networks: Prevents signal overload in fiber-to-the-home installations.
Optical Distribution Frames: Supports accurate signal management in complex networking environments.

Selection Notes

Typically selected when an ST/UPC single-mode link needs a fixed, known attenuation value (up to 25 dB) to prevent receiver overload or to stabilize power during commissioning/testing, using a male-to-female plug-in format for quick insertion at patch points.
May not be appropriate when the required attenuation target or wavelength plan (1310/1550) isn’t defined, or when the link is not actually single-mode ST/UPC, since an incorrect fixed value can under-power the receiver or hide underlying link issues during troubleshooting.
