Attenuator

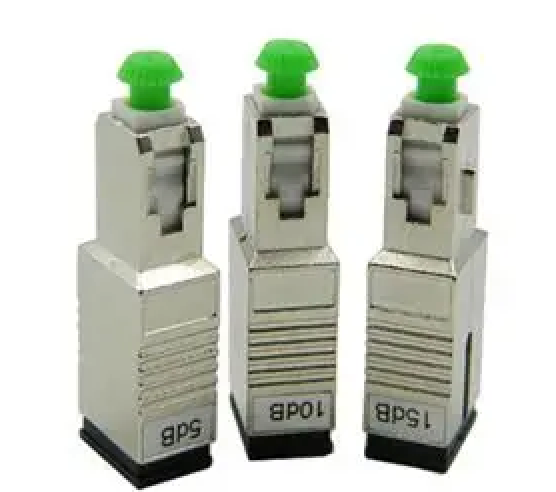

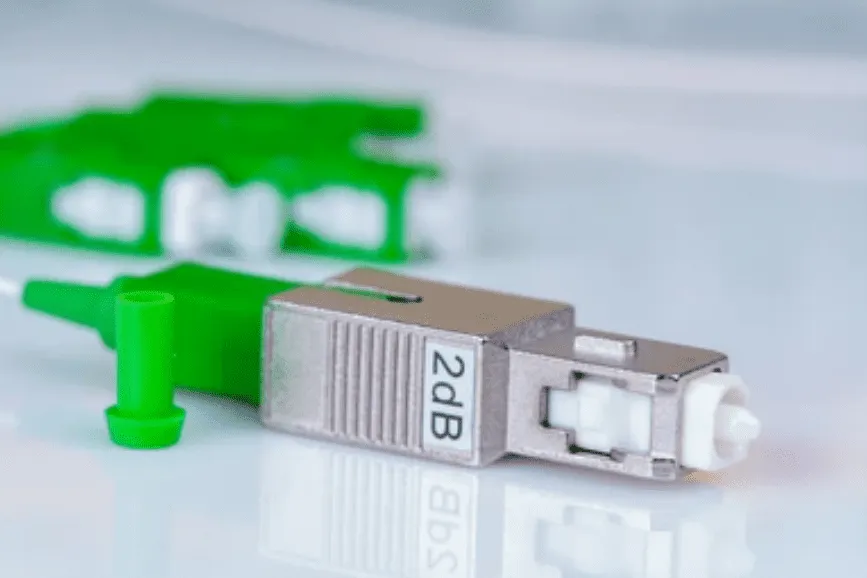

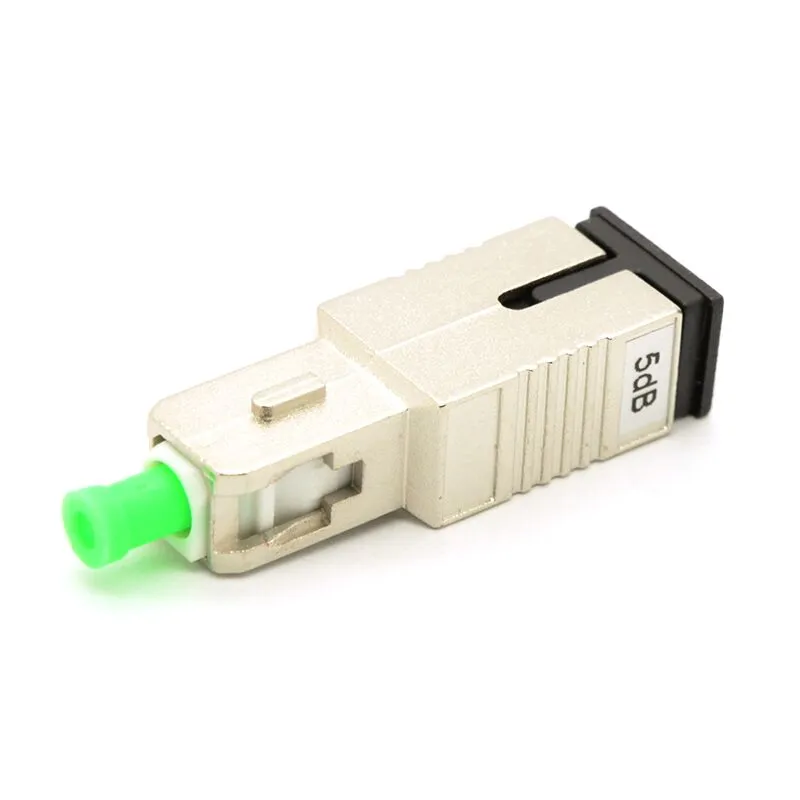

SC Plug-IN Fixed Fiber Optic Attenuator

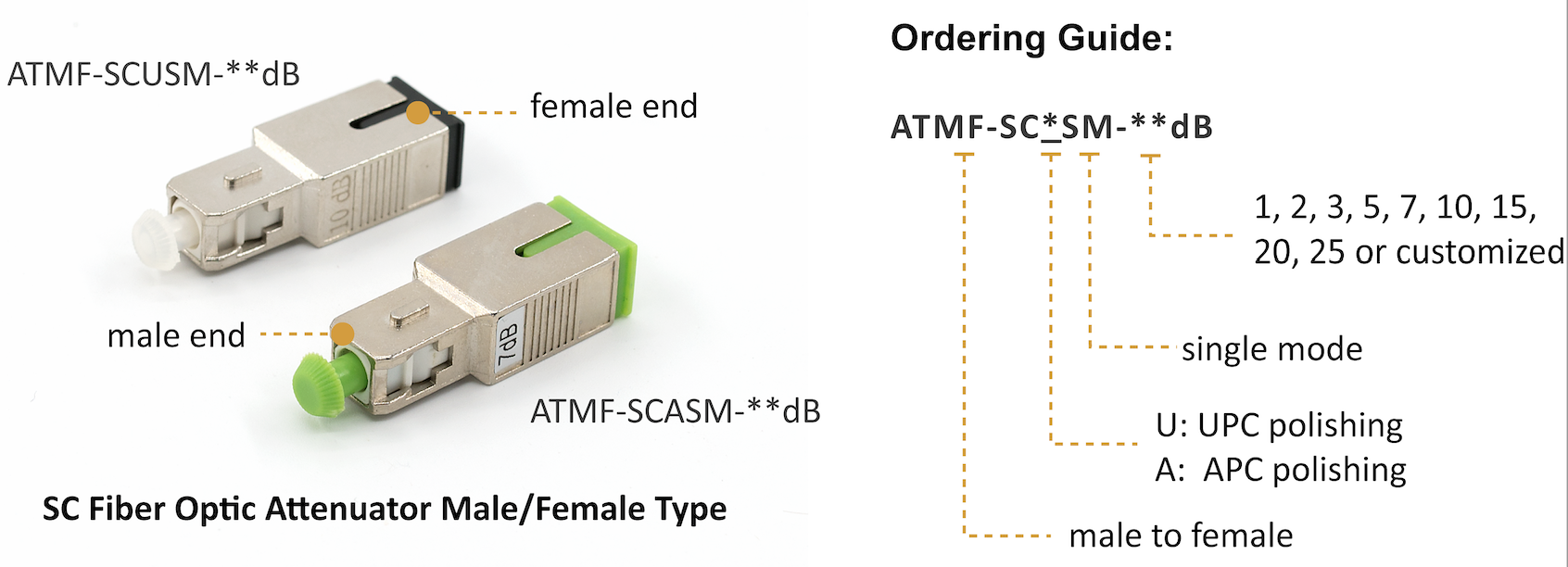

Fiber optic attenuator is able to reduce optical power and limit the optical power received by the photodetector within the limits of the optical receiver. We offer a wide range of fiber optic attenuators, SC attenuator, FC attenuator, LC attenuator, ST attenuator, etc. Fixed Fiber Optic Attenuator has different attenuation values from 1dB~30dB, 5dB attenuator, 10dB attenuator, 15dB attenuator, 20dB attenuator, 30dB attenuator for example. Fixed Fiber optic attenuator has female to female adapter type attenuator and male to female plug-in type attenuator. Female to female SC Fiber Optic Attenuator is able to couple from SC connector to SC connector, while male to female SC Fiber Optic Attenuator from SC adapter to SC connector. The combination of attenuation film in female to female SC attenuator or attenuation fiber in male to female SC attenuator and precision molded polymer/metal housing provides reliable and stable optical attenuation performance.

Request Quote WhatsApp

Details

High Attenuation Precision: Guarantees consistent output levels, perfect for high-speed network environments.
Accurate Signal Attenuation: Provides fixed levels of attenuation for consistent network performance.
Durable and Reliable: Built to withstand frequent use in demanding environments.
Low Insertion Loss: Ensures high data transmission efficiency with minimal signal loss.
High Return Loss: Reduces signal reflection, improving overall network stability.
Flexible Compatibility: Works seamlessly with various single mode fiber systems.

Product Specifications

Fiber Connector	SC/UPC & SC/APC
Transfer Mode	Single Mode
Connector Gender	Fixed Male to Female
Attenuation Range	0-25dB
Attenuation Accuracy	±0.5dB(1dB-10dB)；±1.0dB(11dB-25dB)
Available Wavelengths	1310nm,1550nm,1310&1550nm
Wavelength Dependence	＜0.3dB Change in insertion loss for 1310-1550nm
Return Loss	≥50dB(UPC)；≥60dB(APC)
Polarization Dependent Loss	≤0.2dB
Temperature Range	-40-80°C(≤0.2dB in insertion loss)
Humidity Range	+/-0.2dB Change in 10% to 90% relative Humidity Range
Vibration	≤0.1dB Change between 10Hz to 55Hz
Drop	+/-0.2dB after 8 drops from 1.8meters onto a hard surface
Maximum Optical Input Power	200mW

Application Details:

Telecommunication Networks: Manages signal strength for improved network reliability.
Data Centers: Ensures balanced optical signals for efficient data handling.
FTTH Installations: Prevents signal overload in residential fiber networks.
Optical Distribution Frames: Supports precise signal management in complex network systems.

Selection Notes

Typically selected when an SC/UPC single-mode link needs a fixed, known attenuation value (up to 25 dB) to prevent receiver overload or to normalize power levels during commissioning/testing, using a male-to-female plug-in format for quick insertion at ODF/patch points.
May not be appropriate when the attenuation target, wavelength plan (1310/1550), or the site’s SC/UPC vs SC/APC convention isn’t clearly defined, since an incorrect fixed value or polish mismatch can under-power the receiver or hide underlying link issues during troubleshooting.
