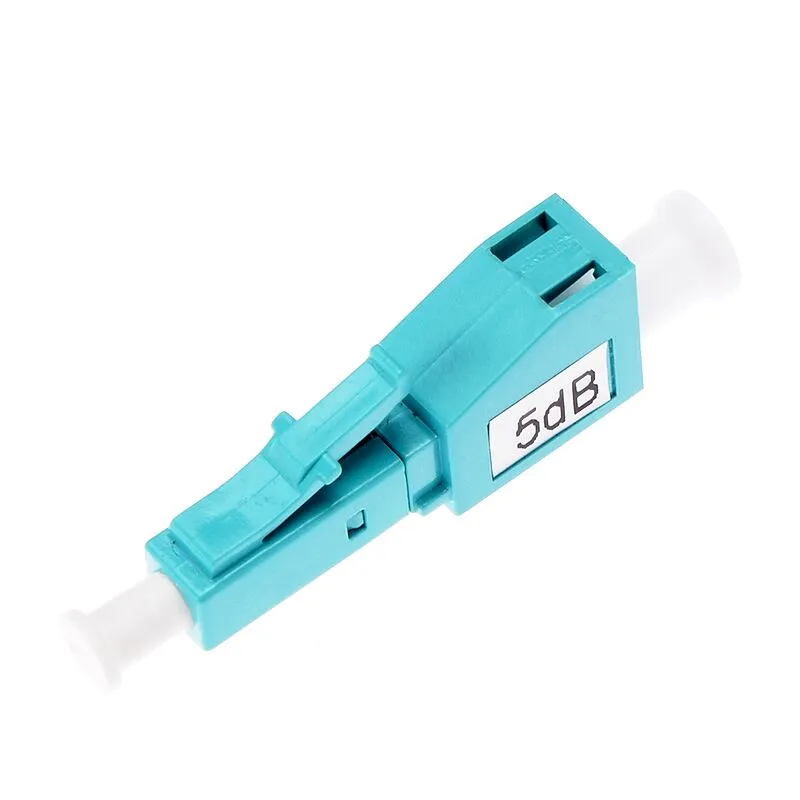

LC Plug-IN Fixed Fiber Optic Attenuator (SM & MM)

Fiber optic attenuator is able to reduce optical power and limit the optical power received by the photodetector within the limits of the optical receiver.

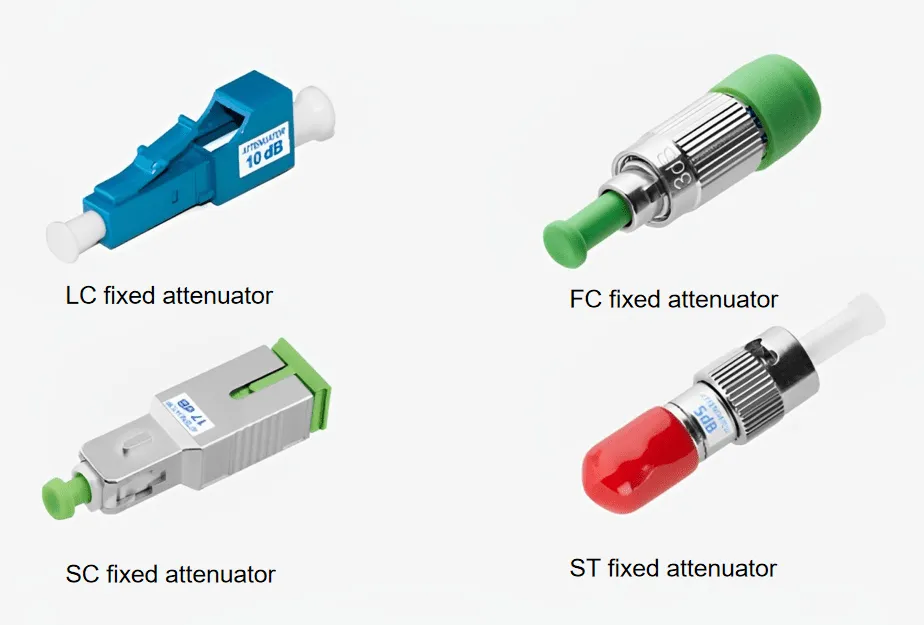

We offer a wide range of fiber optic attenuators, SC attenuator, FC attenuator, LC attenuator, ST attenuator, etc.
Fixed Fiber Optic Attenuator has different attenuation values from 1dB~30dB, 5dB attenuator, 10dB attenuator, 15dB attenuator, 20dB attenuator, 30dB attenuator for example.
Fixed Fiber optic attenuator has female to female adapter type attenuator and male to female plug-in type attenuator.

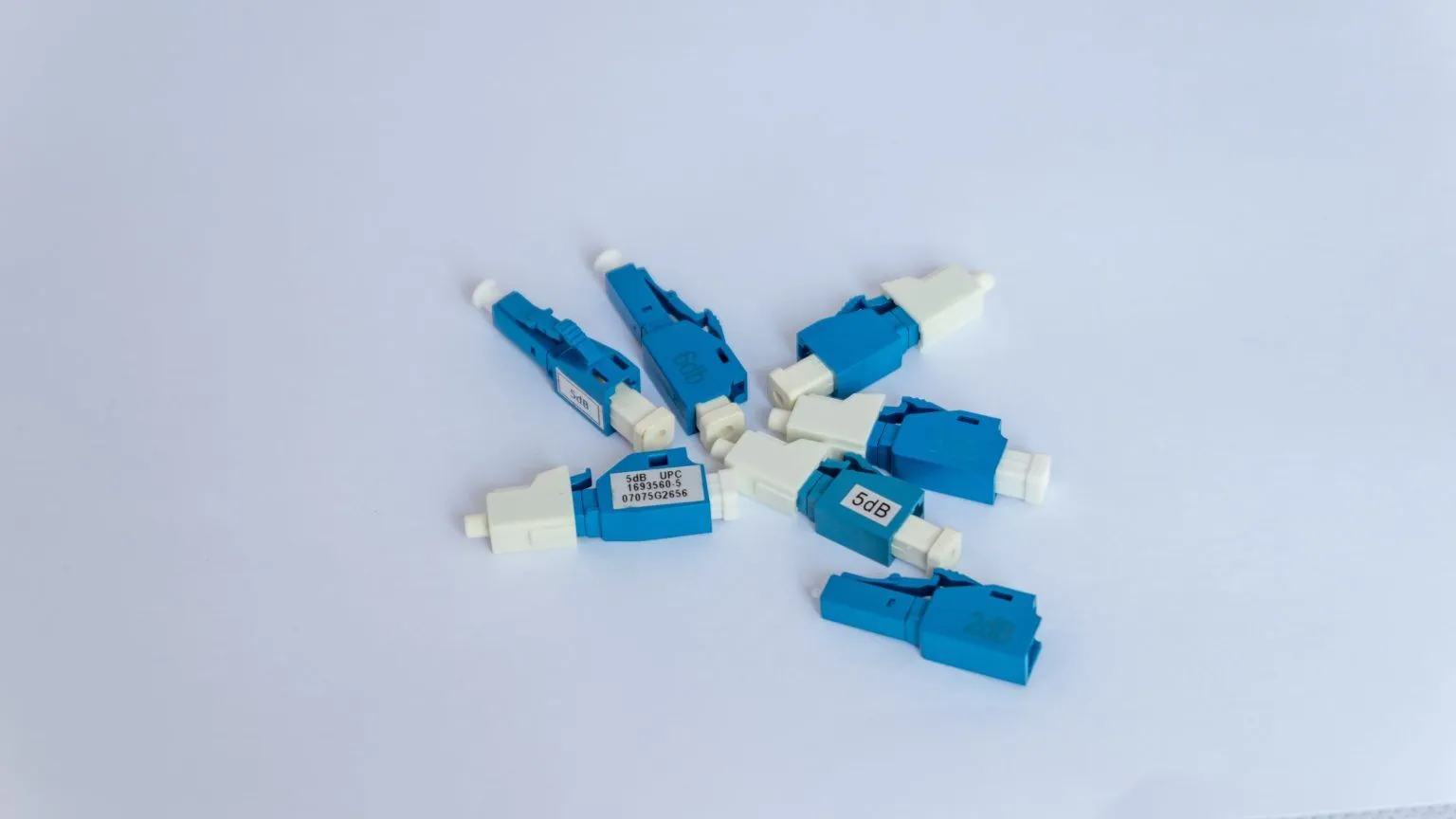

Female to female LC Fiber Optic Attenuator is able to couple from LC connector to LC connector, while male to female LC Fiber Optic Attenuator from LC adapter to LC connector. The combination of attenuation film in female to female LC attenuator or attenuation fiber in male to female LC attenuator and precision molded polymer/metal housing provides reliable and stable optical attenuation performance.

Feature Details

Precise Power Control: Offers fixed attenuation values to ensure receivers operate within optimal ranges.
Easy Plug-in Installation: Male-to-female LC/UPC interface allows quick deployment without splicing or tools.
Stable SM Performance: Optimized for single-mode fiber at 1310 nm and 1550 nm wavelengths.
Low Reflection: UPC polish delivers return loss ≥55 dB, reducing signal degradation.
Durable Build: Ceramic ferrule and compact body support repeated use in demanding environments.

Product Specifications

Item	Value
Fiber Connector	LC/UPC, LC/APC
Transfer Mode	Single Mode & Multi Mode
Connector Gender	Fixed Male to Female
Attenuation Range	1-25dB
Attenuation Accuracy	±0.5dB (1dB-10dB); ±1.0dB (11dB-25dB)
Available Wavelengths	1310nm, 1550nm, 1310&1550nm
Wavelength Dependence	＜0.3dB Change in insertion loss for 1310-1550nm
Return Loss	≥50dB(UPC); ≥60dB(APC)
Polarization Dependent Loss	≤0.2dB
Temperature Range	-40-80℃ (≤0.2dB in insertion loss)
Humidity Range	+/-0.2dB Change in 10% to 90% relative Humidity Range
Vibration	≤0.1dB Change between 10Hz to 55Hz
Drop	+/-0.2dB after 8 drops from 1.8meters onto a hard surface
Maximum Optical Input Power	200mW

Application Details

Telecommunication Networks: Controls high signal strength for stable connectivity.
Data Centers: Balances signal levels to ensure efficient data transmission.
FTTH Installations: Prevents signal degradation in residential fiber networks.
Optical Distribution Frames: Provides precise signal control for complex network structures.
