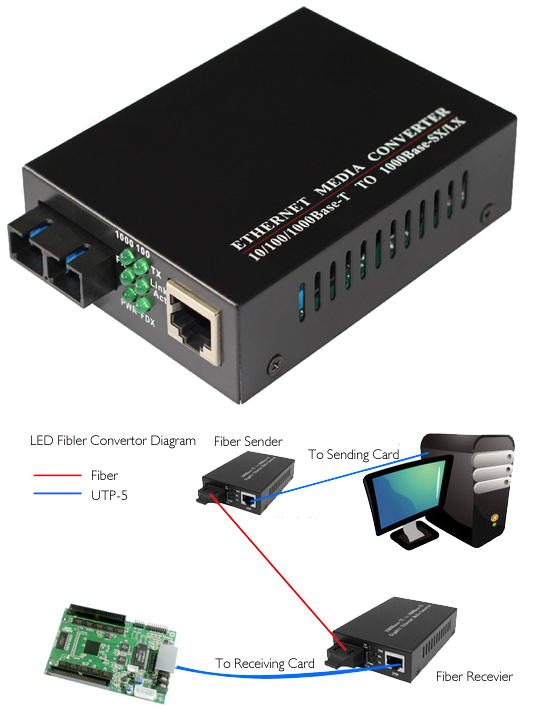

A&T Gigabit Ethernet Dual Fiber Media adopts switching technology to fulfil media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections: 10/100/1000Base-T and 1000Base-SX/LX.
10/100/1000M Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections: 10/100/1000Base-T and 1000Base-SX/LX. It inter-converts electrical signals of 10/100/1000Base-T twisted pairs with optical signals of 1000Base-SX, extending the transmission distance of a network from 100m via copper cables to 220m (fiber size: 62.5/125μm)/550m (fiber size:50/125μm) via fiber optical cables. It supports transmission in multi-mode dual fiber; single-mode dual fiber, single-mode single fiber.
switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections: 10/100/1000Base-T and 1000Base-SX/LX. It inter-converts electrical signals of 10/100/1000Base-T twisted pairs with optical signals of 1000Base-SX, extending the transmission distance of a network from 100m via copper cables to 220m (fiber size: 62.5/125μm)/550m (fiber size:50/125μm) via fiber optical cables. It supports transmission in multi-mode dual fiber; single-mode dual fiber, single-mode single fiber.
| Parameter | Specification |
|---|---|
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 220m (62.5/125μm)/550m (50/125μm) Dual-fiber single-mode: 25/40/60/80Km Single-fiber single-mode: 25/40Km Category-5 twisted pair: 100m |
| Port | One RJ45 connector:connected to STP/UTP category-5 twisted pair One fiber port: Multi-mode SC (fiber size: 50,62.5/125µm) Single modeSC/FC(fiber size: 9/125µm) |
| Conversion means | Media conversion |
| Delay | <10us |
| BER | <10-9 |
| MTBF | 100,000 hours |

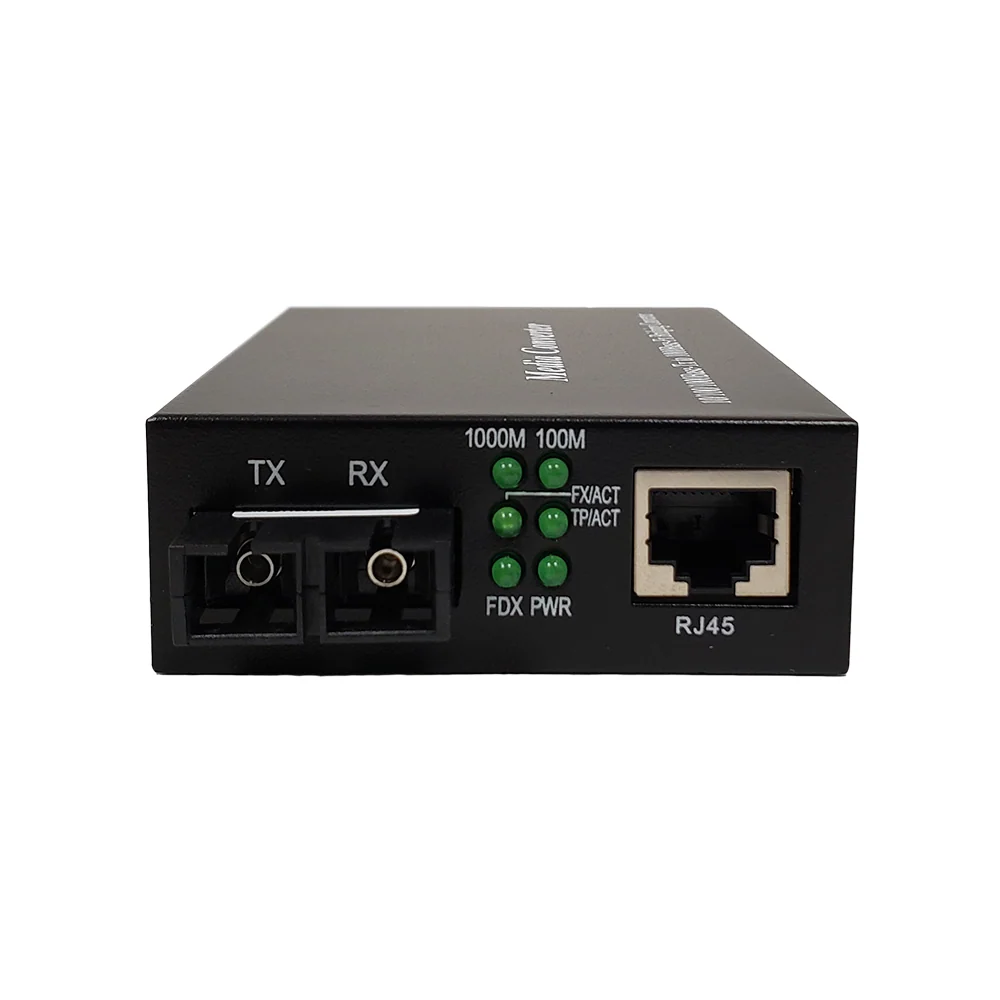

| LED | PWR(power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link100M), TP ACT (twisted pair packet forwarding) |
| PowerSupply | AC110-220V to DC5V 2A |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions | 26mm (H) * 70mm (W) * 94mm (D) (external power supply) 30mm (H) * 110mm (W) * 140mm (D) (internalpower supply) |
RJ-45 interface
The transmission media adopts CAT5 twisted-pair with typical length of 100 meter. It features the function of automatically identifying the through line and cross wire
Fiber interface
SC/ST fiber interface is of duplex mode type, including two interfaces, namely TX and RX. When the two sets of optical transceiver are interfaced or connected to switch with fiber interface, the fiber is in cross connection, namely "TX-RX", "RX-TX" (direct butting for single optical fiber).

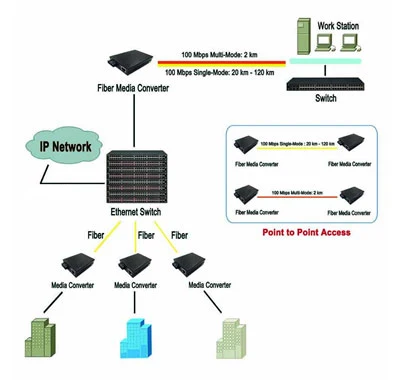

The network device(work station, hub or switch) with RJ-45 interface is connected to RJ-45 jack of optical transceiver through twisted-pair. And the multi/single mode fiber is connected to SC/ST fiber interface of the optical transceiver. Thenswitchon. The corresponding LED is on for correct connection. (See the table below for the LED indicatorlamp)
