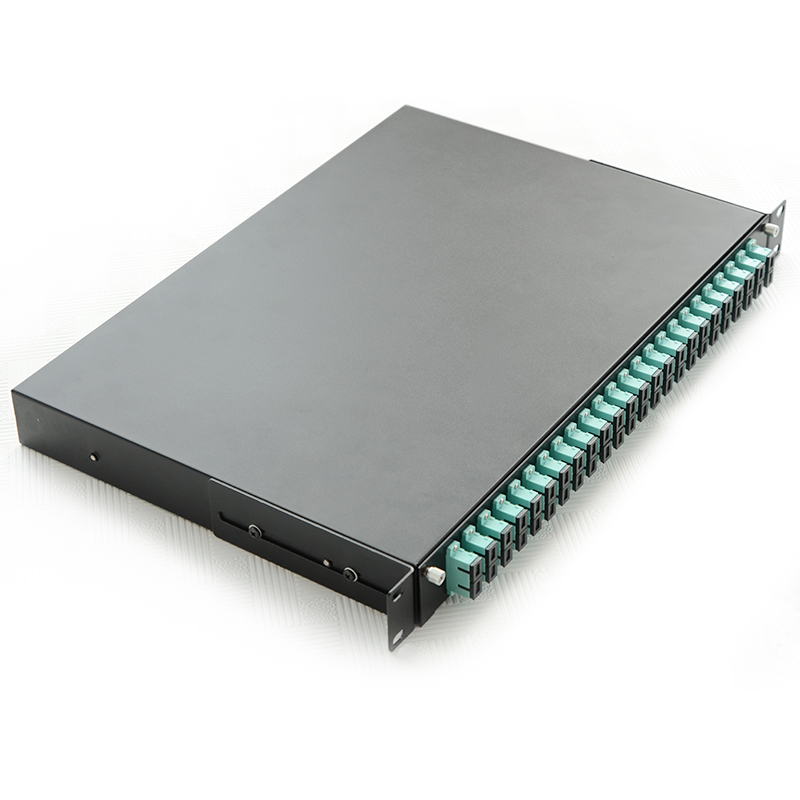

The High-Density 144F-576F MPO/MTP-LC Slide Drawer Patch Panel – Modular 12F Cassette Design for 1U/2U/4U Rack Mount is a high-density fiber optic patch panel designed for efficient fiber management and installation in data centers, telecommunications, and FTTH networks. This panel is built to handle up to 576 fibers and supports MPO/MTP-LC connectivity, ensuring high-speed data transmission and low-loss performance for 40G/100G networks. The slide-out drawer mechanism makes it easy to access and maintain fiber connections, and its tool-free installation saves time and labor during deployment.
| Specification | Details |
| Connector Type | MPO/MTP-LC |
| Cassette Capacity | 12F per cassette |
| Rack Size | 1U, 2U, 4U are available |
| Fiber Count | 144 fibers (1U), 288 fibers (2U), 576 fibers (4U) |
| Material | CRS (Cold Rolled Steel) |
| Dimensions (HxWxD) | 1U: 482.6mm x 455mm x 44mm |
| 2U: 482.6mm x 455mm x 89mm | |
| 4U: 482.6mm x 455mm x 177mm | |
| Operating Temperature | -40°C to +75°C |
| Durability | >1000 mating cycles |
| Mounting Type | Rack-mountable (EIA 19″ rack) |
| Compliance | TIA/EIA-568-C.3, RoHS |
