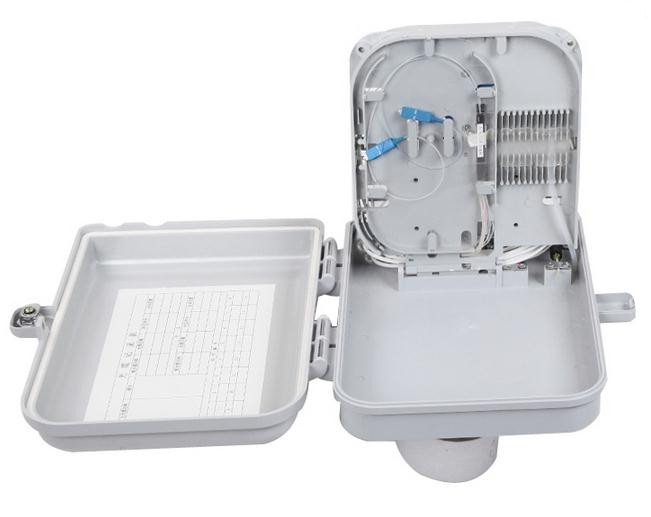

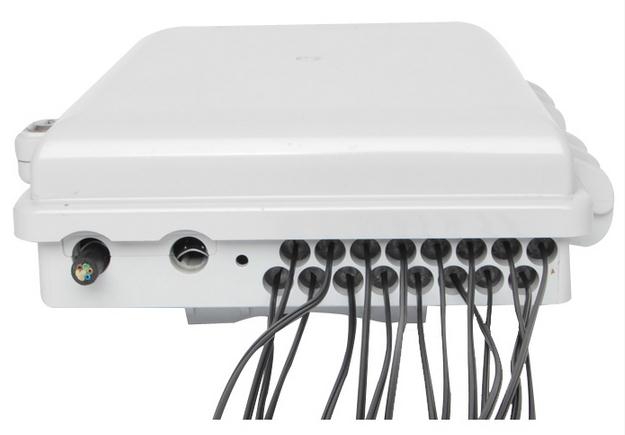

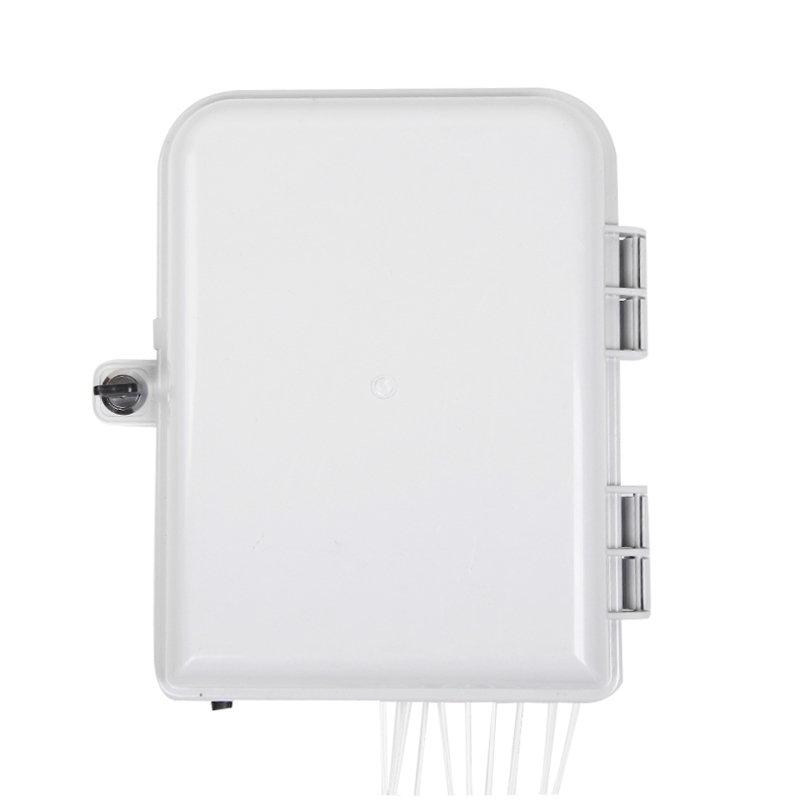

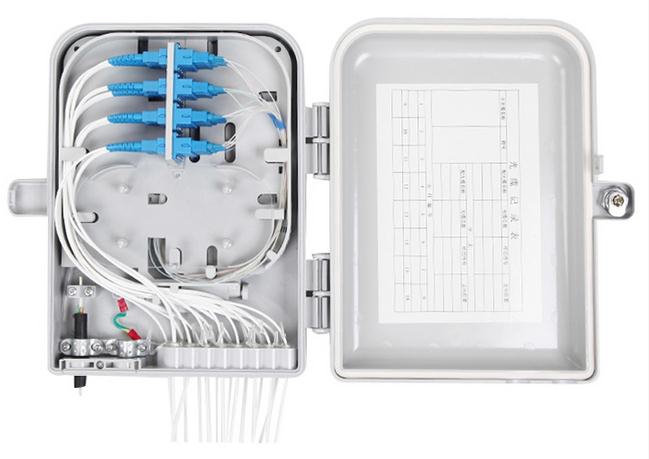

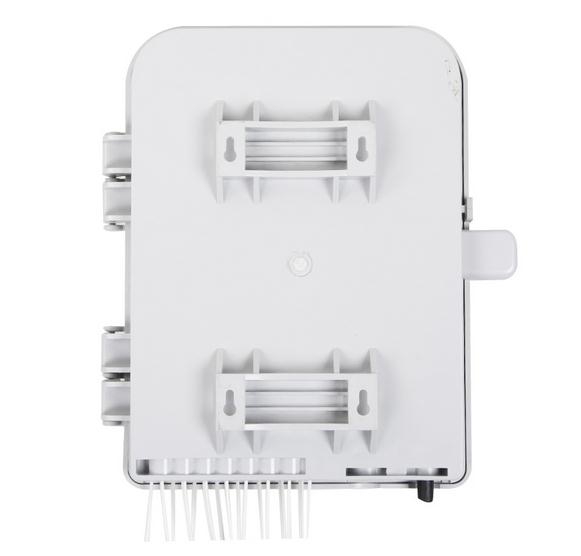

1×16 Optical Splitter Box

INF-1603 Optical Splitter Box - 16 fibers splitting

Description:

 Optical Fiber Distribution Box is the equipment of user access point in optical access network. It realises the introduction, fixing and stripping protection of distribution cable, and the function of connecting and end-forming with home optical cable. It meets the requirements of splitting expansion of optical signal, splicing, protection, storage and management of optical fiber. It can meet the needs of various users. Suitable for indoor or outdoor wall mounting installation.


Request Quote WhatsApp

Applications:



• Widely used in FTTH access network.

• Telecommunication Networks

• CATV Networks

• Data communications networks

•Local Area Networks(LANs)

Features:

  • The box body is made of high-quality engineering plastics. The product has beautiful appearance and good process quality.
  • Among them, DFAC16B can be equipped with 16 SC adapters; SFAC16F can be equipped with two 1- 8-slot optical splitter boxes or one 1(2)-16-slot optical splitter boxes.
  • They can separate out 16 drop cables.
  • Field assembly fast connector can be used in drop cables to improve construction efficiency.
  • Drop cables are fixed, safe and reliable.
  • Page-turning structure is adopted to make construction convenient and fast.
  • Full curvature radius control to ensure that the curvature radius of optical fibers at any location is greater than 30 mm.
  • Wall Installation
  • Protection level: IP55.

  • Photoelectric Performance

    Use Environment

    Connector Attenuation

    ≤0.3dB

    Operation Temperature

    -40~ + 60°C

    Return Loss

    APC ≥ 60dB                    UPC ≥ 50dB

    Storage Temperature

    -25~ + 55°C

    Main Mechanical Performance Parameters

    Relative HUmidity

    ≤95% (+30 °C)

    Pull-out Life

     ≥ 1000 Times

    Atmospheric Pressure

    62 ~ 101KPa

Production Name

INF-FLX-16G Optical Fiber Distribution Box

Size (mm)

310*236.5*98.4

Storage

8/ 16/ 24 Ports

Adapter Type & Quantity

SC (8/16pcs)

Weight (g)

909 grm

Installation

Wall hanging/ Pole Mounting type
