Description:
A&T Optical Distribution Box provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network. We provide Optical Distribution Box made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.

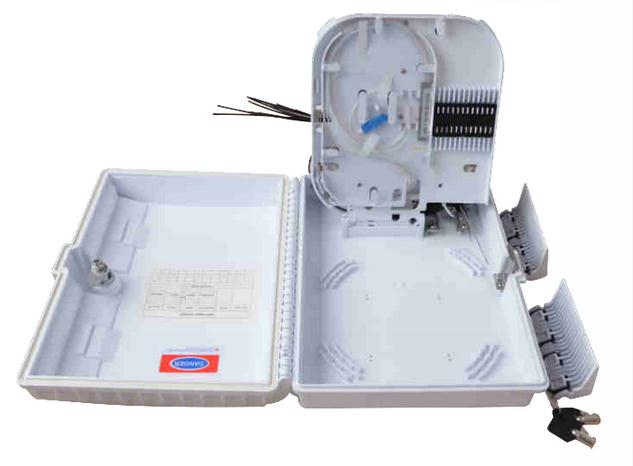

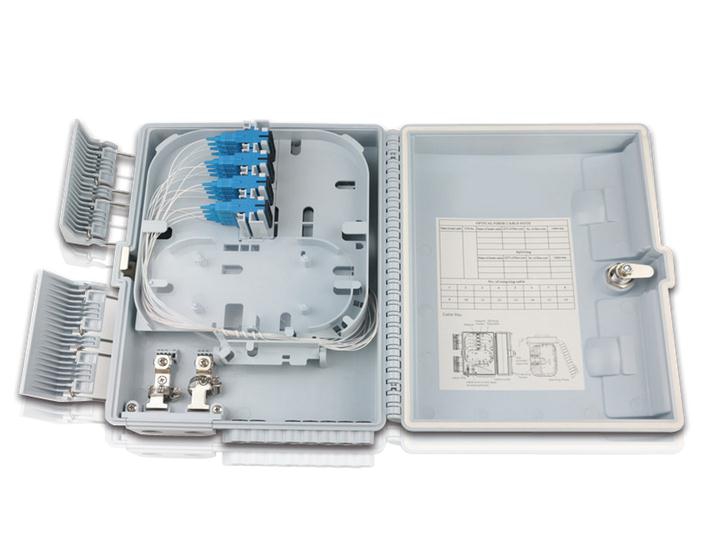

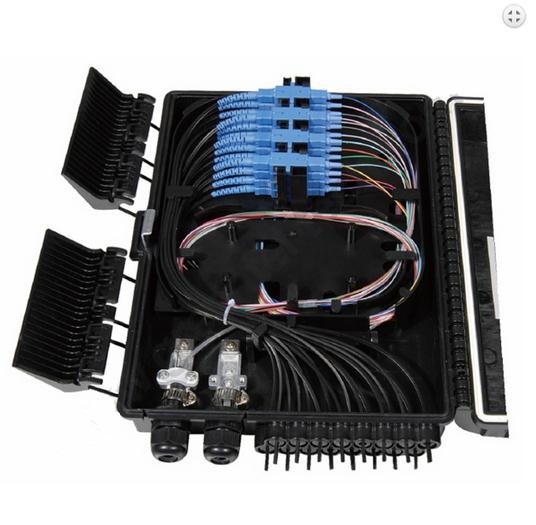

INF-ODB-1601 Optical Distribution Box integrates fiber cable fixation, storage, splicing and distribution in an outdoor and indoor wall mounting and outdoor pole mounting box.
Features:
| Max. Capacity | SC: 16 fibers LC: 32 fibers |
| Max. Inlet Cable Diameter | 18mm |
| Inlet Cable Number | 2 cable glands or 1 uncut cable port |
| Max. Outlet Cable Diameter | 4.6mm |
| Outlet Cable Number | 16pcs |
| Protection Grade | IP65 |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 293(H)*219(W)*84(D)mm |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
| Model | INF-ODB-1601 |
| XX: Adapter | None: without adapter SU: SC/UPC SA: SC/APC LU: LC/UPC LA: LC/APC |
| XX: Pigtail | None: without pigtail SU: SC/UPC SA: SC/APC LU: LC/UPC LA: LC/APC |

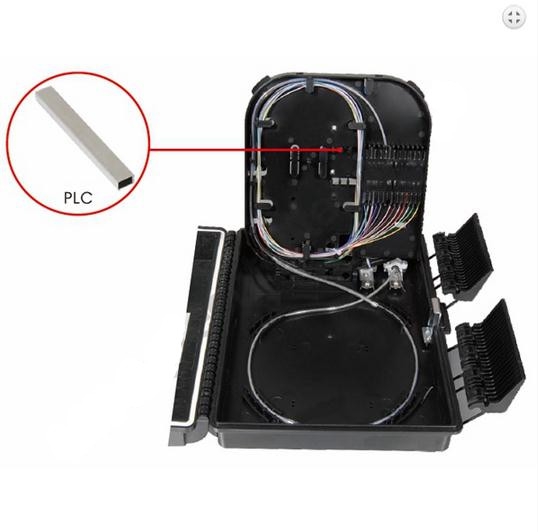

| XX: Splitter | None: without splitter B12: 1×2 B14: 1×4 B18: 1×8 B116: 1×16 |
| XX: Inlet Cable Port | CG: waterproof cable gland UN: uncut cable port |
| XX: Mounting Method | W: wall mounting P: pole mounting |
| XX: Box Color | G: gray B: black |
