Description:

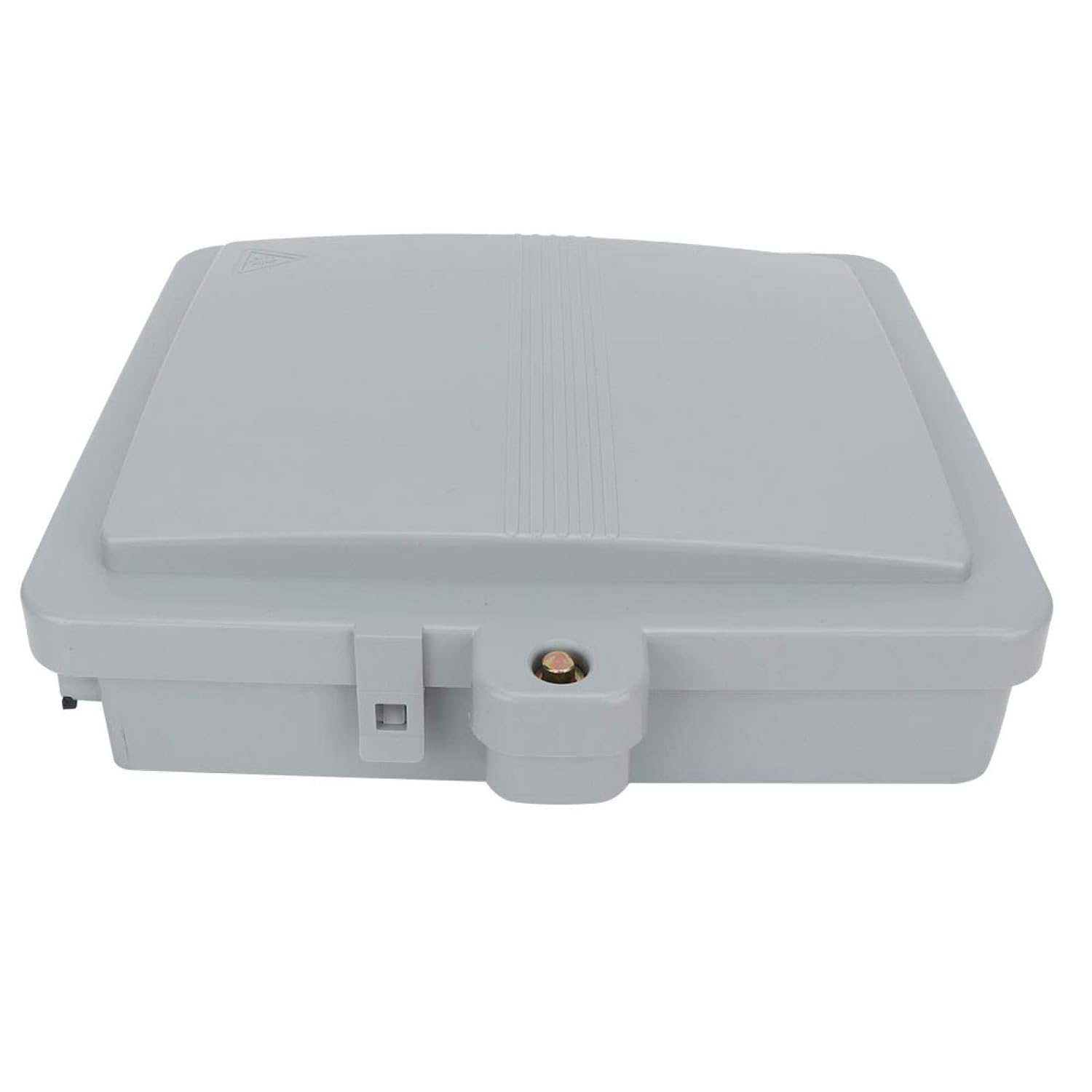

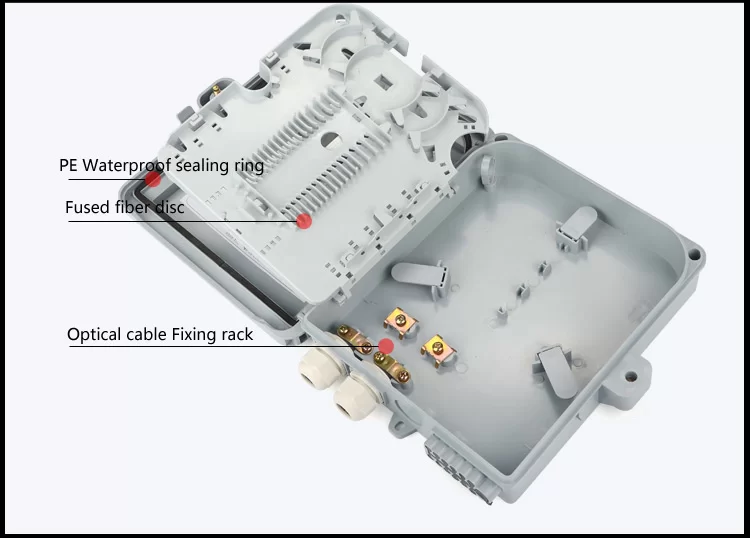

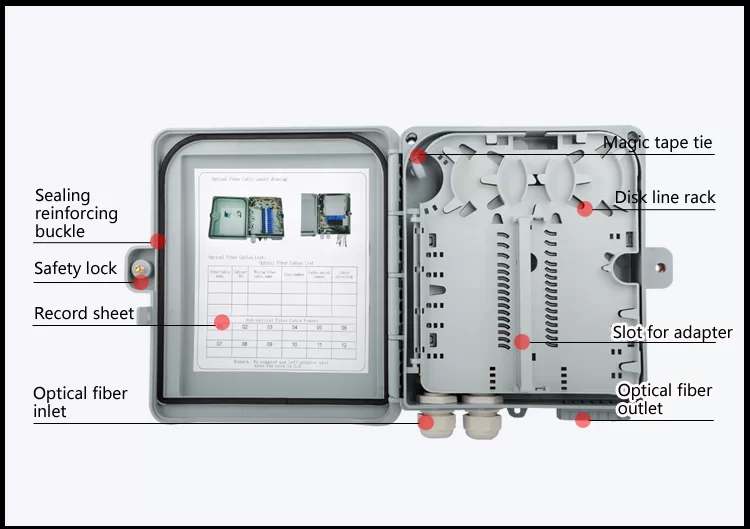

INF-OTB-120C fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Dimensions and Capacity | |
| Dimensions (H*W*D) | 303mm*236mm*109mm |
| Color | White/ Grey |
| Weight | 1.35KG |
| Adapter Type | SC Simplex/LC Duplex |
| Adapter Capacity | 12 pcs |
| Splitter Type | 1*2/1*4/1*8 mini type splitter |
| Number of Cable Entrance(s) and Exit(s) | 12 |
| Cable inlet caliber | 16mm |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter |
| Working Temperature | -40°C~+65°C |
| Shipping Infor mation | |

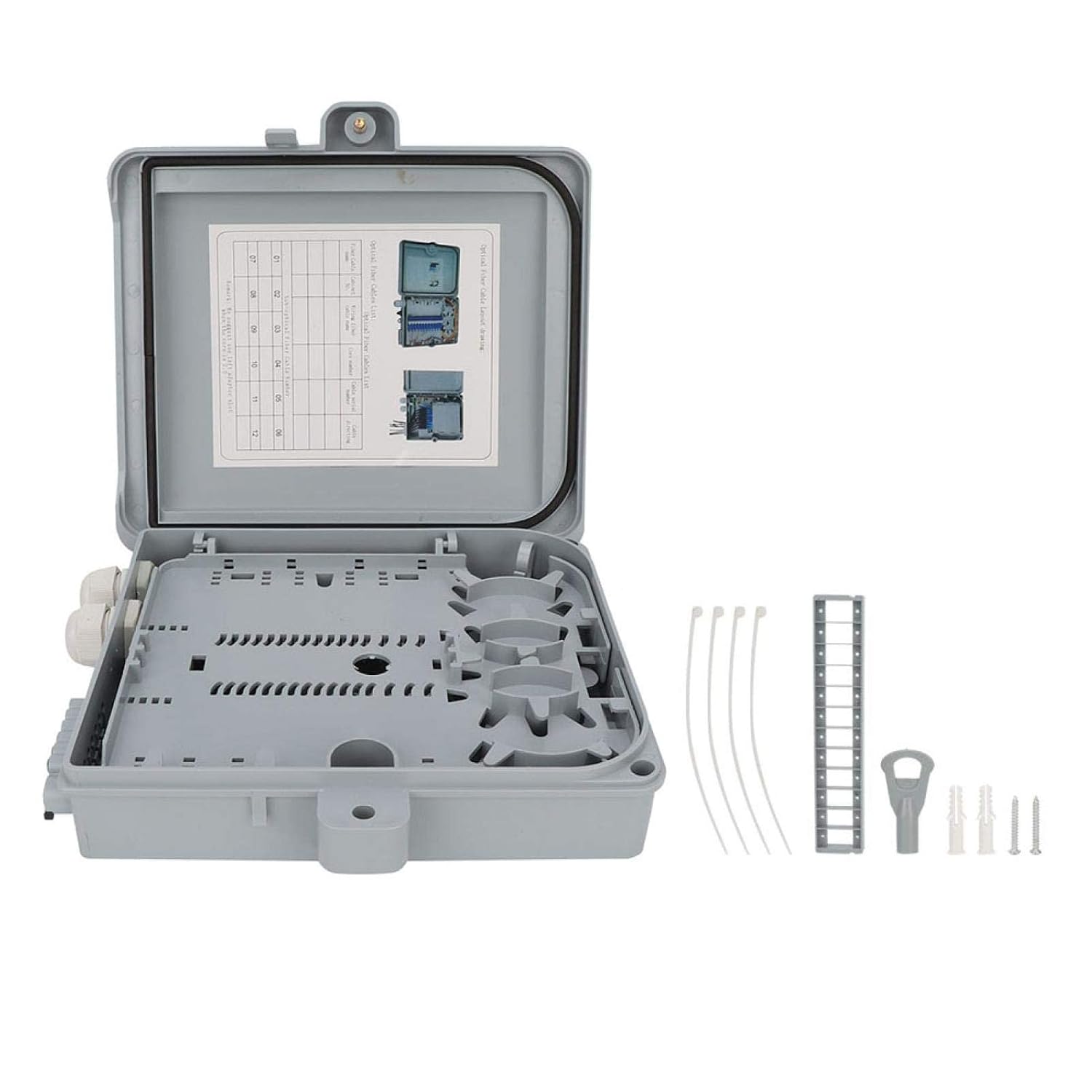

| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories, 1 set |
| Package Dimensions(W*H*D) | 308mm*250mm*130mm |
| Material | Carton box |
| Weight | 1.5KG |
